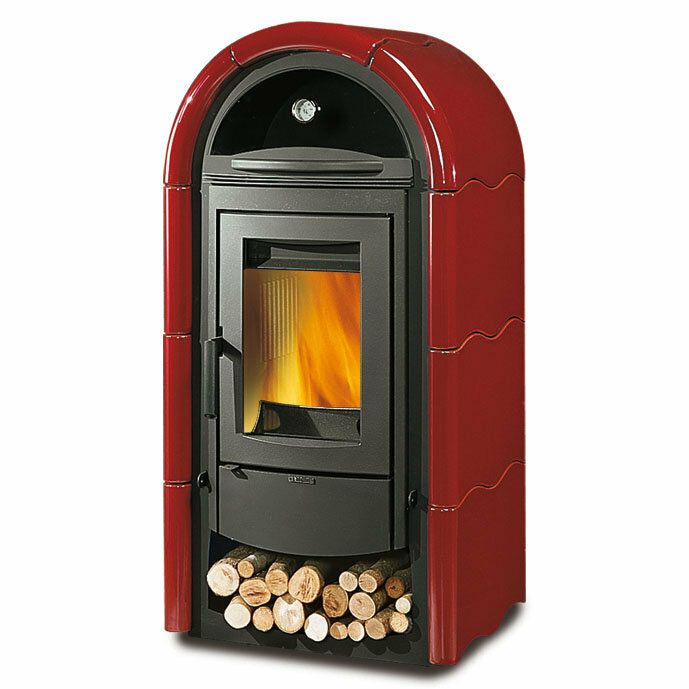

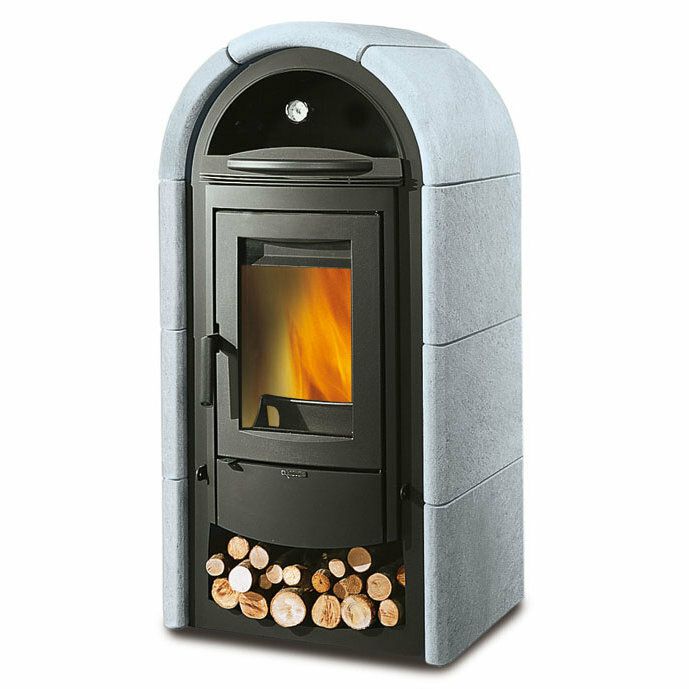

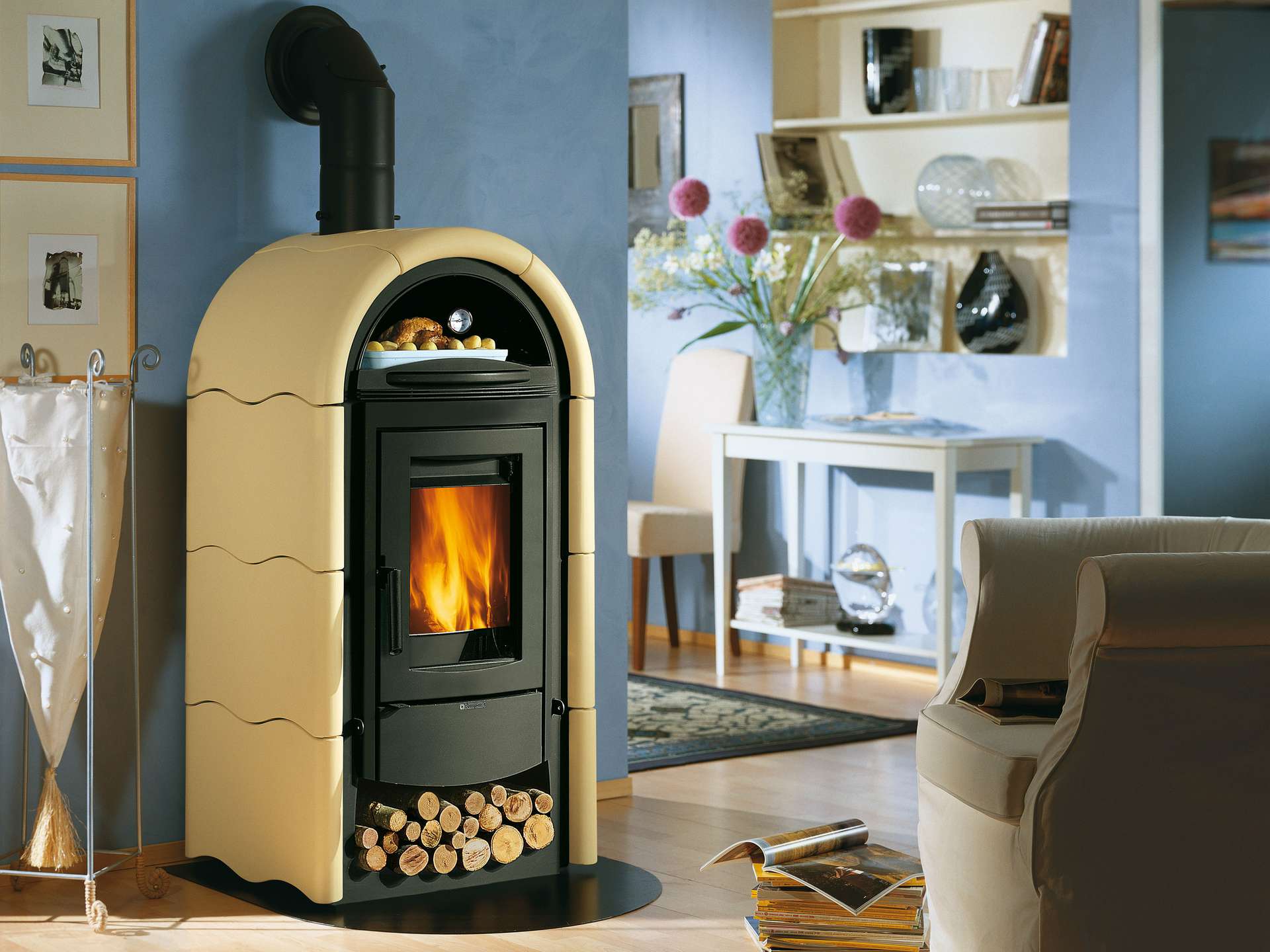

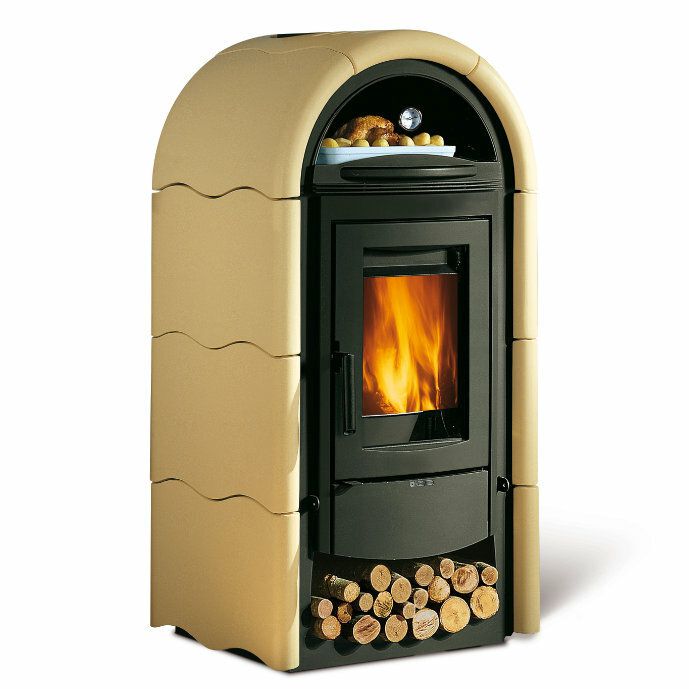

Wood burning stove with extractable porcelain enamelled steel oven and hand-crafted majolica cladding. Logholder. Internal facing of the hearth in cast iron. Ceramic glass and wide fire vision.
Adjustable primary and secondary air for a better combustion control and post combustion system for low emissions.

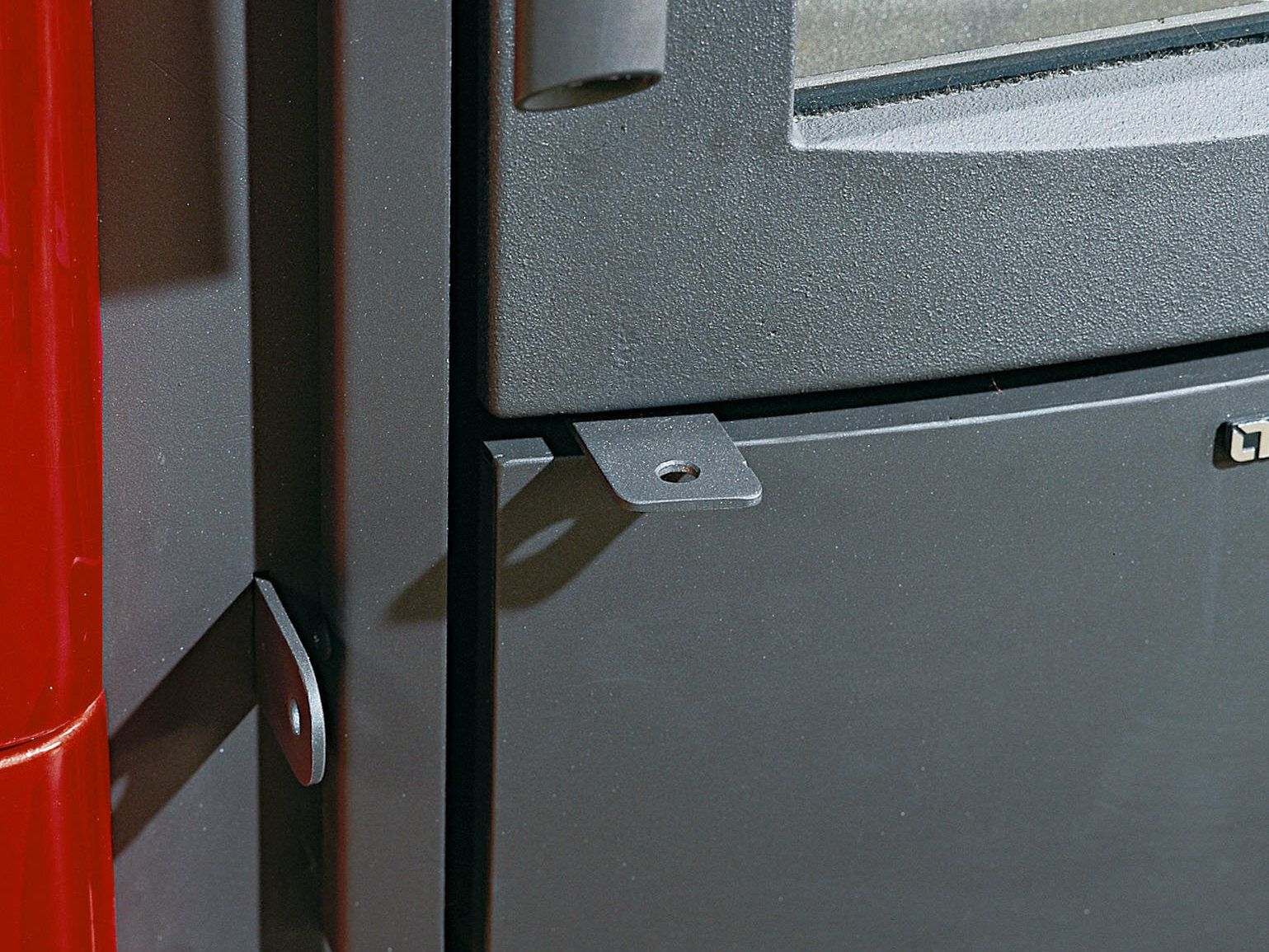

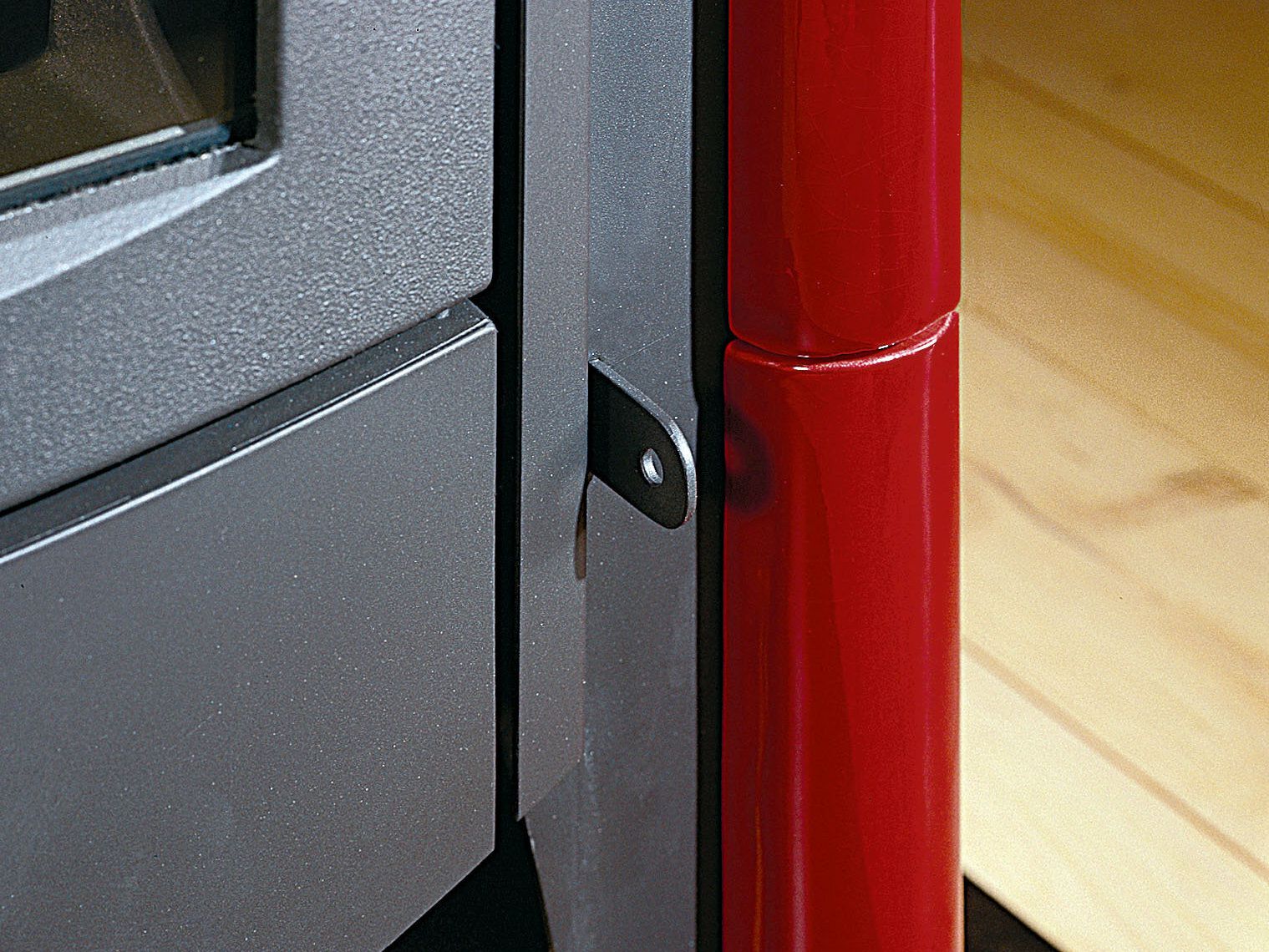

Doors in cast iron
The high-quality cast-iron doors are made to last and ensure perfect sealing at all times.
Glass cleaning system
A system of pre-heated air which removes any deposit from the fire-door glass.
Outdoor air intake - ASC
A particular connection system which allows to introduce air from the outside into the pre-heated environment around the fire-box.
Post combustion
The combustion system developed by La Nordica-Extraflame allows, due to a secondary/tertiary air system, a post combustion which significantly reduces emissions.
Technical Data |
|
|
|
|
|---|---|---|---|---|
| SKU |
HLNWK7113430
|
HLNWK7113432
|
HLNWK7113438
|
|
| General data | ||||
| Nominal heat output | kW |
10.60
|
||
| Heatable volume | m3 |
303
|
||
| Efficiency at rated power | % |
85.10
|
||
| Sealed chamber |
|
|||
| Fuel | ||||
| Hourly consumption | kg/h |
2.90
|
||
| Wood length | cm |
30
|
||
| Fire mouth width | mm |
300
|
||
| Fire mouth height | mm |
340
|
||
| Hearth width | mm |
377
|
||
| Hearth depth | mm |
388
|
||
| Hearth height | mm |
340
|
||
| Connections | ||||
| Flue outlet size | mm |
150
|
||
| Flue position |
Top
|
|||
| Air intake pipe | mm |
120
|
||
| Cooking and baking | ||||
| Oven capacity | l |
24
|
||
| Oven width | mm |
417
|
||
| Oven depth | mm |
275
|
||
| Oven height | mm |
210
|
||
| Design | ||||
| External facing |
Majolica
|
|||
| Design style |
Traditional
|
|||
| Design shape |
Square
|
|||
| Energy Efficiency | ||||
| Energy class |
|
|||
| Product Variants | ||||
| Color |
|
|
|
|
| Physical Data | ||||
| Dimensions (L x W x H) | mm | 660 x 586 x 1300 | 660 x 586 x 1300 | 660 x 586 x 1300 |
| Net Weight | kg | 239.0 | 371.0 | 239.0 |
