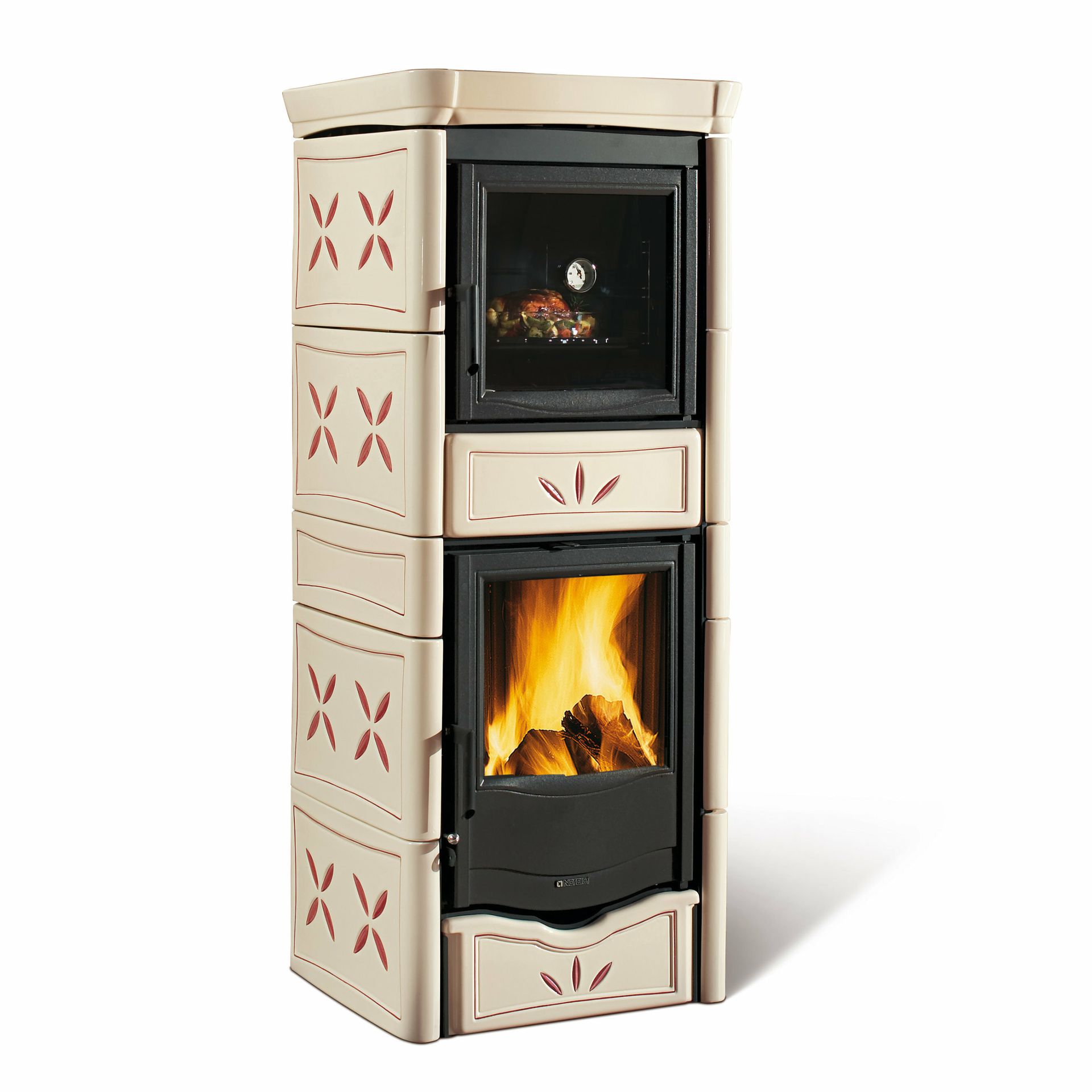

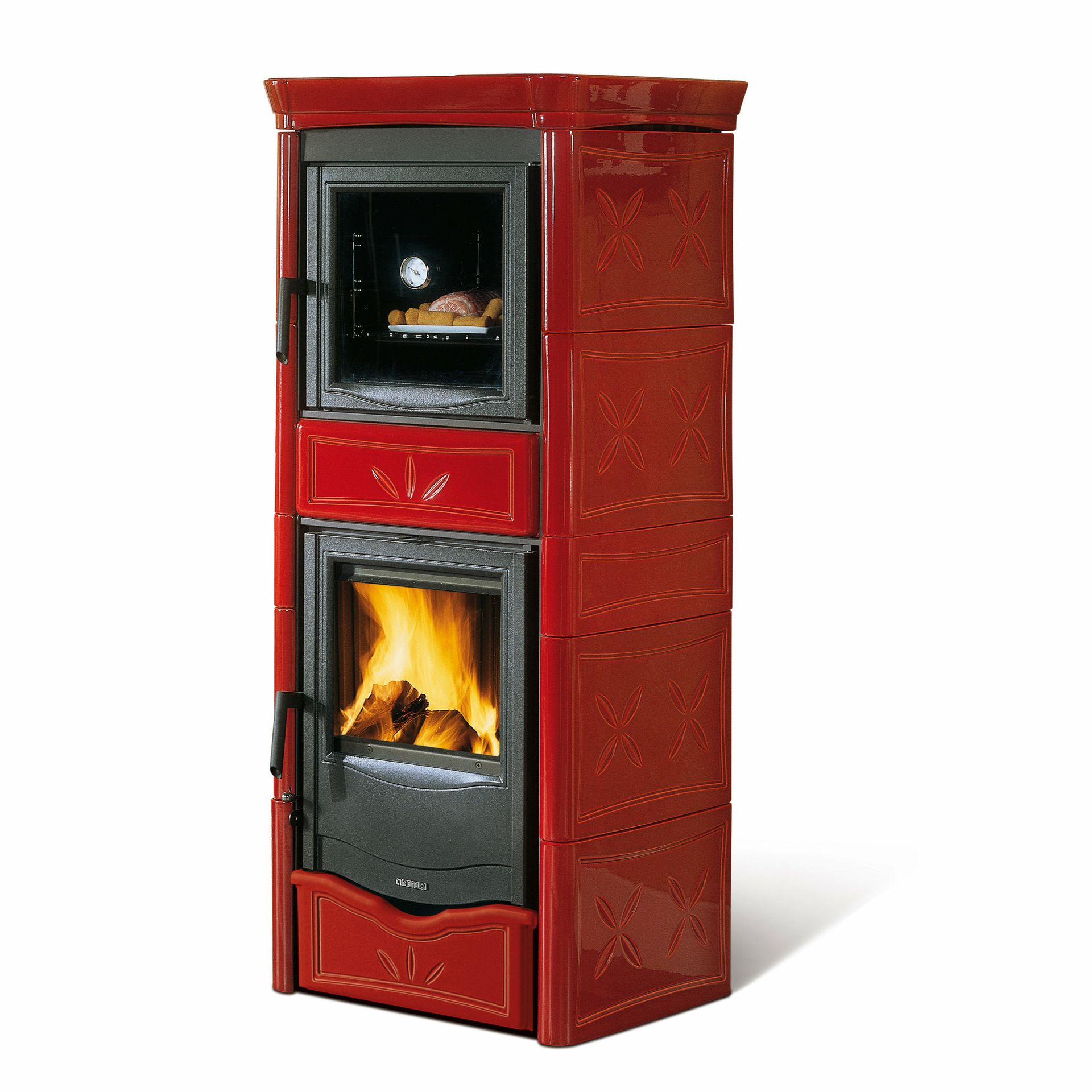

Wood burning stove with hand-crafted majolica cladding. Enameled cast iron doors. Internal facing of the hearth in cast iron. Ceramic glass with a wide fire vision.
Adjustable primary and secondary air for a better combustion control and post combustion system for low emissions.
Equipped as standard with an enamelled backing tray.
Doors in cast iron
The high-quality cast-iron doors are made to last and ensure perfect sealing at all times.
Glass cleaning system
A system of pre-heated air which removes any deposit from the fire-door glass.
Outdoor air intake - ASC
A particular connection system which allows to introduce air from the outside into the pre-heated environment around the fire-box.
Post combustion
The combustion system developed by La Nordica-Extraflame allows, due to a secondary/tertiary air system, a post combustion which significantly reduces emissions.
Technical Data |
Discontinued
|
Discontinued
|
|
|---|---|---|---|
| SKU |
HLNWK7116380
|
HLNWK7116388
|
|
| General data | |||
| Nominal heat output | kW |
9.10
|
|
| Heatable volume | m3 |
260
|
|
| Efficiency at rated power | % |
86.00
|
|
| Sealed chamber |
|
||
| Fuel | |||
| Hourly consumption | kg/h |
2.40
|
|
| Wood length | cm |
30
|
|
| Fire mouth width | mm |
355
|
|
| Fire mouth height | mm |
345
|
|
| Hearth width | mm |
379
|
|
| Hearth depth | mm |
327
|
|
| Hearth height | mm |
370
|
|
| Connections | |||
| Flue outlet size | mm |
130
|
|
| Flue position |
Top
|
||
| Air intake pipe | mm |
120
|
|
| Cooking and baking | |||
| Oven capacity | l |
37
|
|
| Oven width | mm |
330
|
|
| Oven depth | mm |
370
|
|
| Oven height | mm |
300
|
|
| Design | |||
| External facing |
Majolica
|
||
| Design style |
Traditional
|
||
| Design shape |
Square
|
||
| Energy Efficiency | |||
| Energy class |
|
||
| Product Variants | |||
| Color |
|
|
|
| Physical Data | |||
| Dimensions (L x W x H) | mm | 587 x 572 x 1423 | 587 x 572 x 1423 |
| Net Weight | kg | 242.0 | 242.0 |
