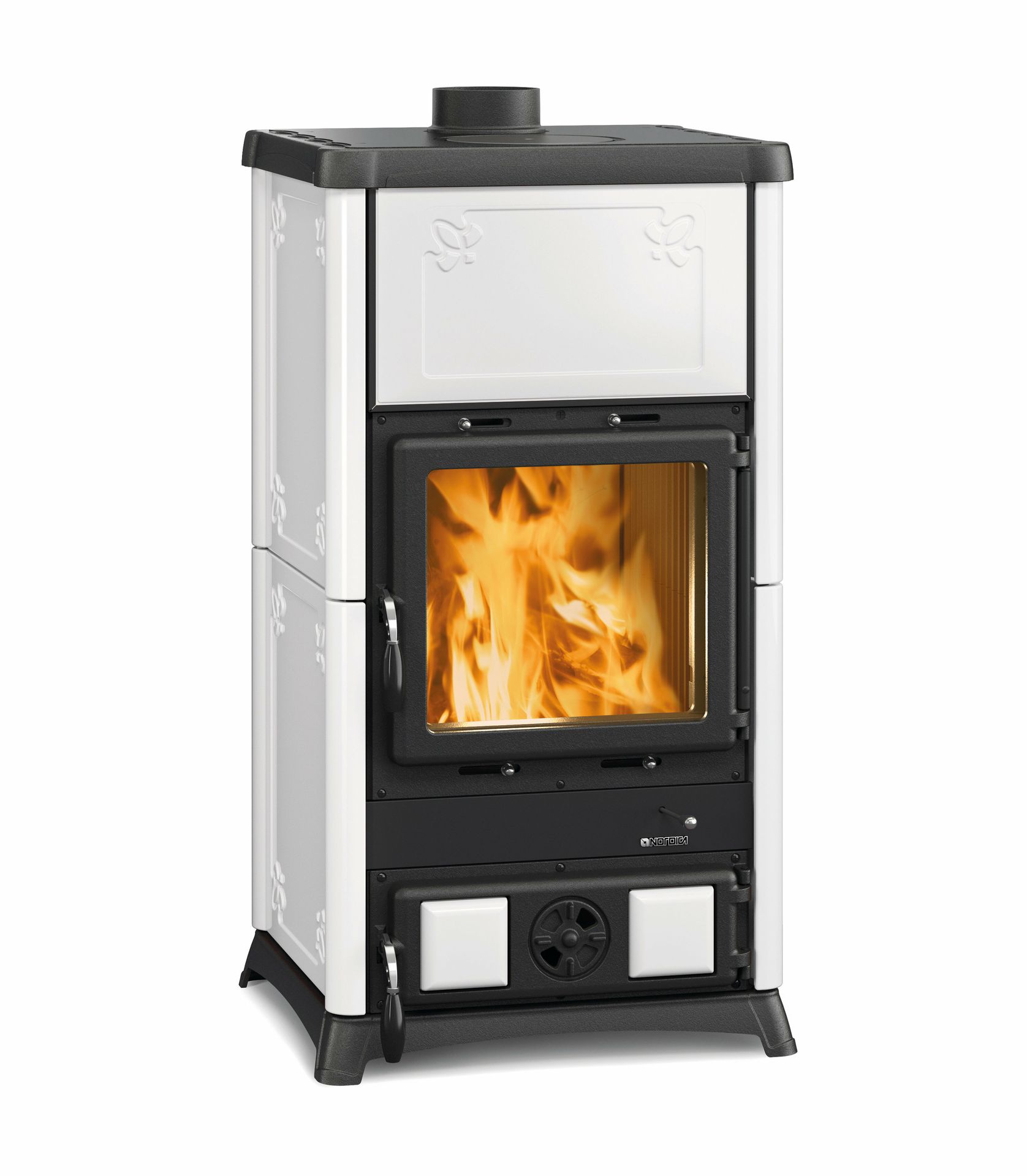

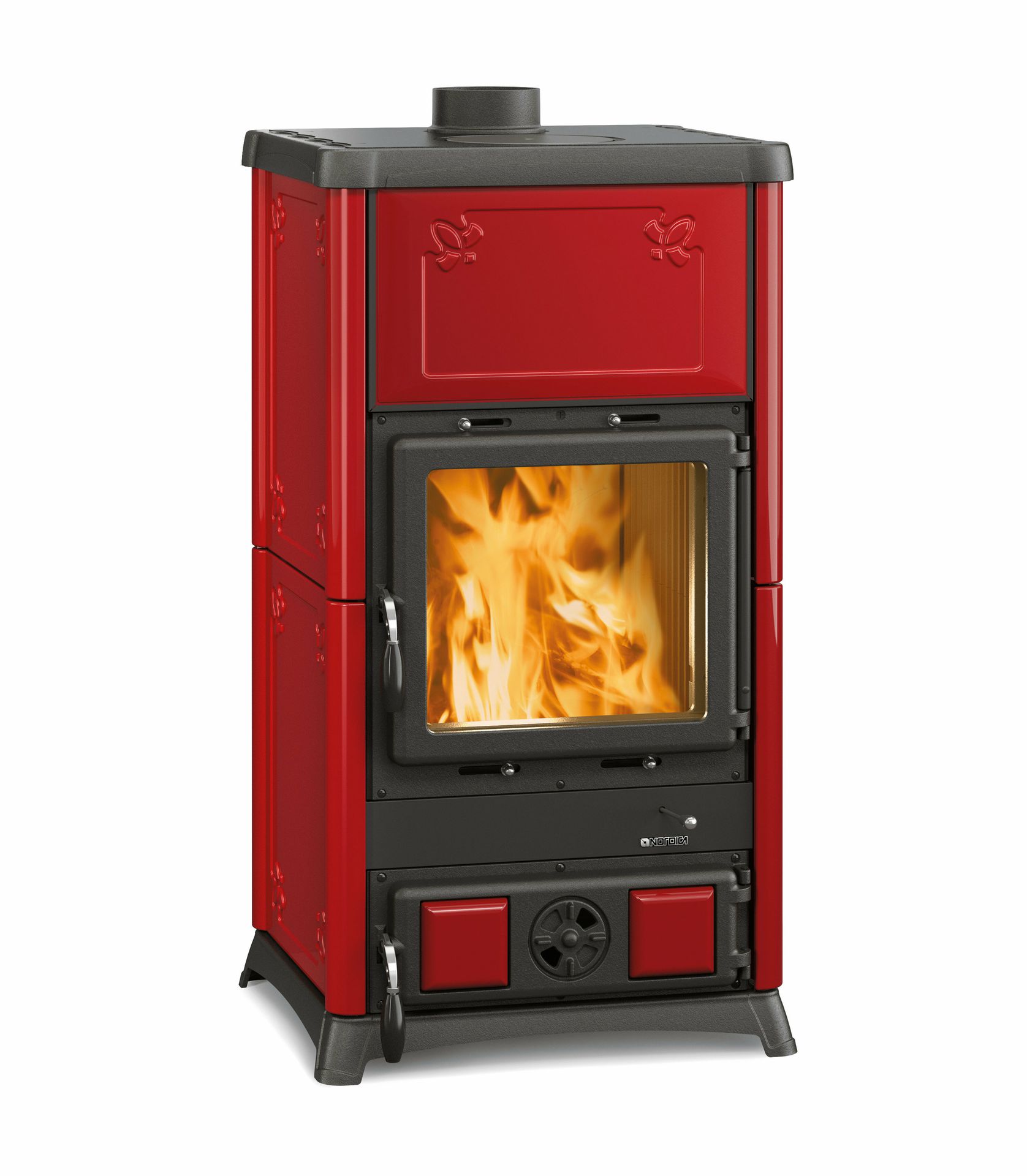

Wood burning stove with external facing in hand-crafted majolica cladding.
Wood burning stove with hand-crafted majolica cladding. Enameled cast iron doors, top, base and frame. Internal facing of the hearth in cast iron. Ceramic glass.
Adjustable primary and secondary air for a better combustion control and post combustion system for low emissions.
Doors in cast iron
The high-quality cast-iron doors are made to last and ensure perfect sealing at all times.
Glass cleaning system
A system of pre-heated air which removes any deposit from the fire-door glass.
Outdoor air intake - ASC
A particular connection system which allows to introduce air from the outside into the pre-heated environment around the fire-box.
Post combustion
The combustion system developed by La Nordica-Extraflame allows, due to a secondary/tertiary air system, a post combustion which significantly reduces emissions.
Technical Data |
|
|
|
|---|---|---|---|
| SKU |
HLNWR7112700
|
HLNWR7112703
|
|
| General data | |||
| Nominal heat output | kW |
8.30
|
|
| Heatable volume | m3 |
238
|
|
| Efficiency at rated power | % |
86.40
|
|
| Sealed chamber |
|
||
| Fuel | |||
| Hourly consumption | kg/h |
2.30
|
|
| Wood length | cm |
30
|
|
| Fire mouth width | mm |
315
|
|
| Fire mouth height | mm |
285
|
|
| Hearth width | mm |
377
|
|
| Hearth depth | mm |
362
|
|
| Hearth height | mm |
368
|
|
| Connections | |||
| Flue outlet size | mm |
130
|
|
| Flue position |
Top
|
||
| Air intake pipe | mm |
100
|
|
| Design | |||
| External facing |
Majolica
|
||
| Design style |
Traditional
|
||
| Design shape |
Square
|
||
| Energy Efficiency | |||
| Energy class |
|
||
| Product Variants | |||
| Color |
|
|
|
| Physical Data | |||
| Dimensions (L x W x H) | mm | 559 x 547 x 1035 | 559 x 547 x 1035 |
| Net Weight | kg | 175.0 | 175.0 |
