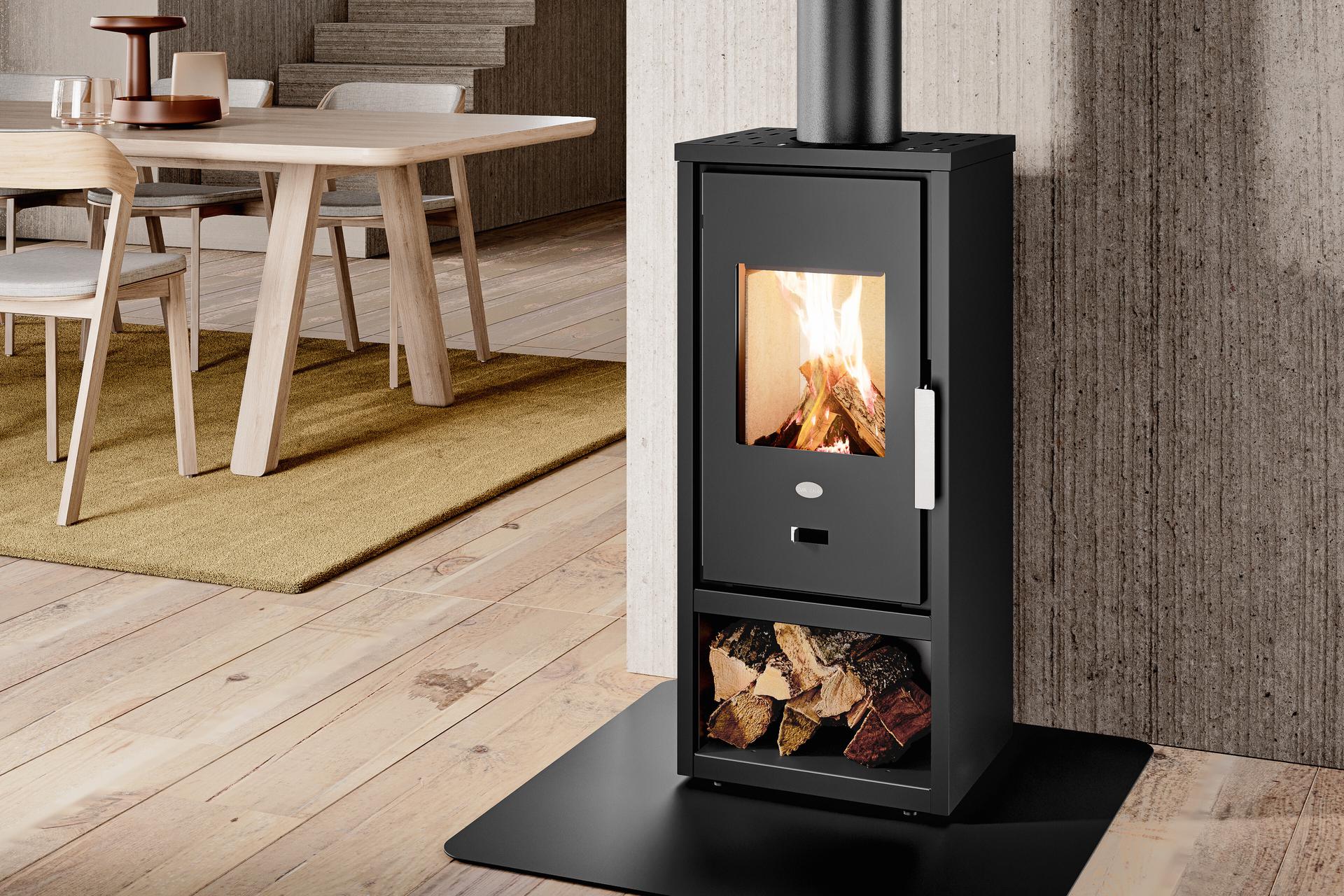

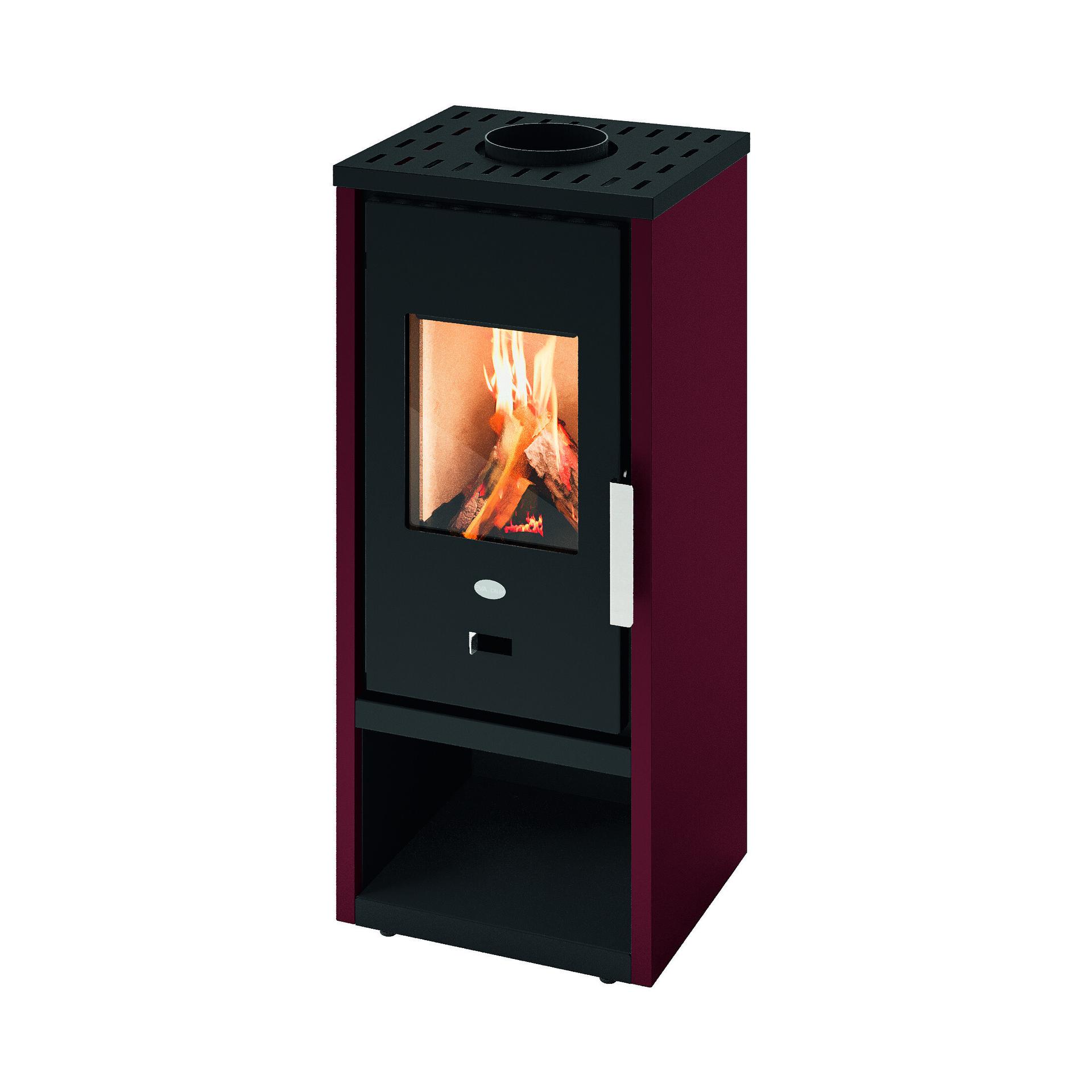

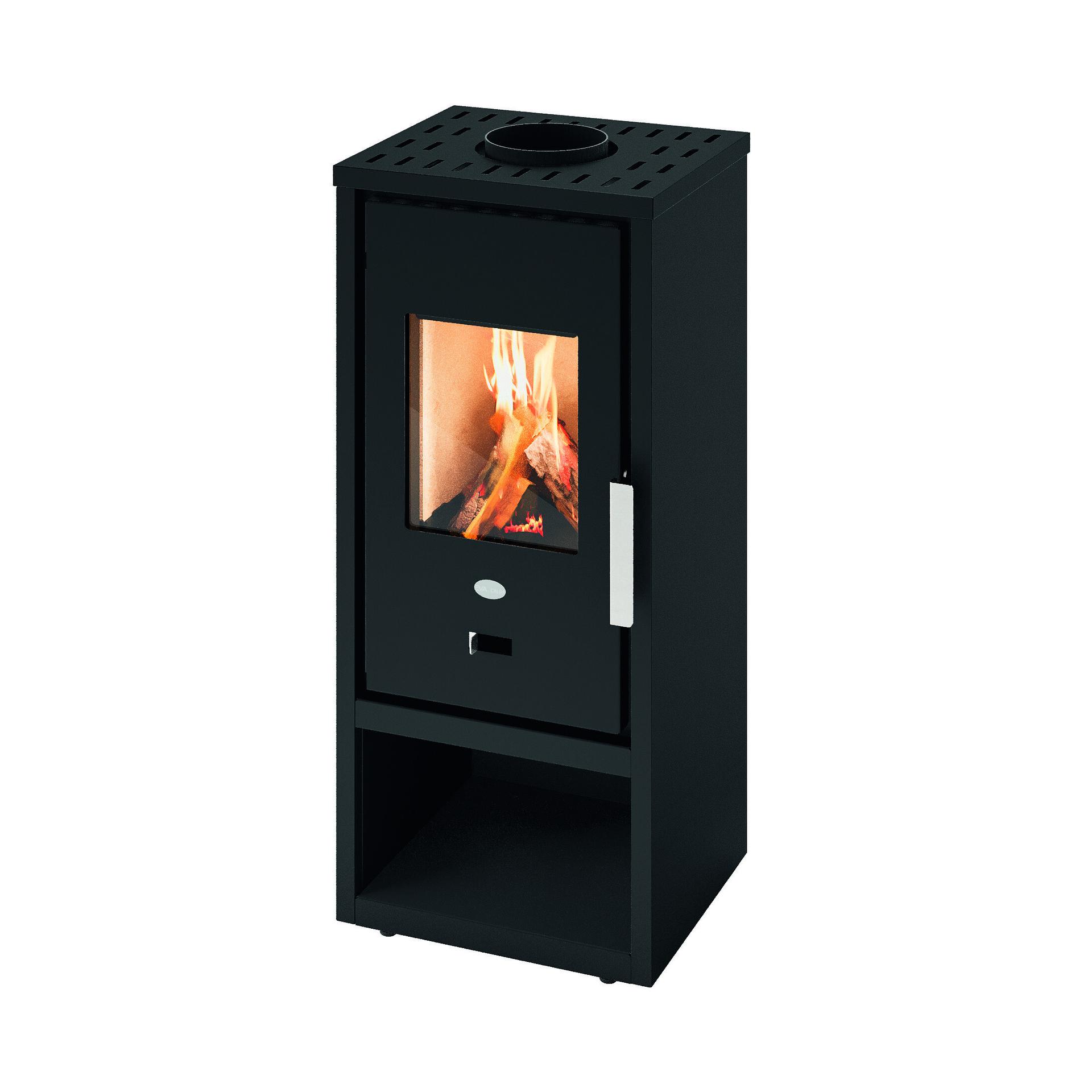

Wood stove with vermiculite combustion chamber and triple combustion.
New Product

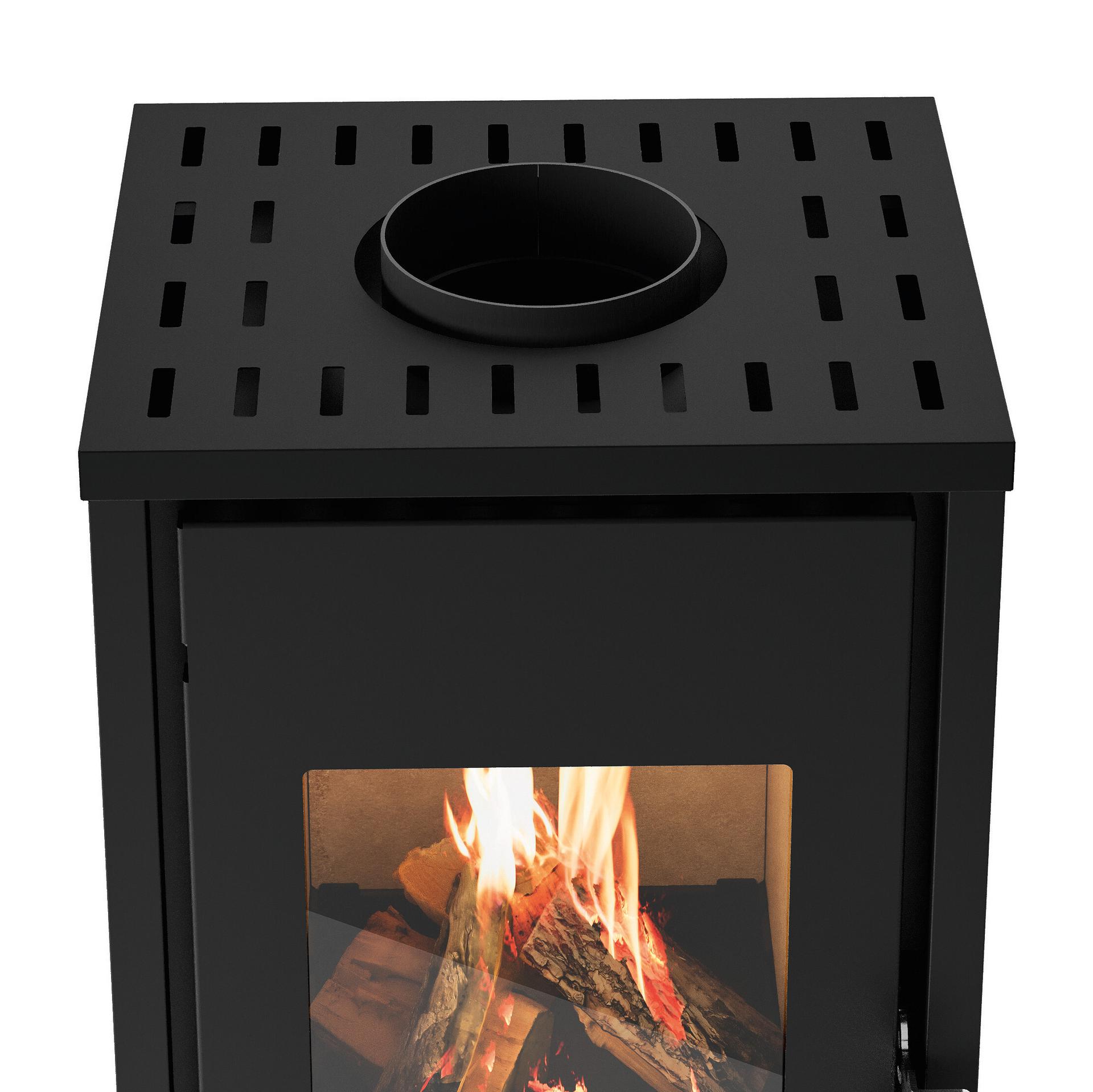

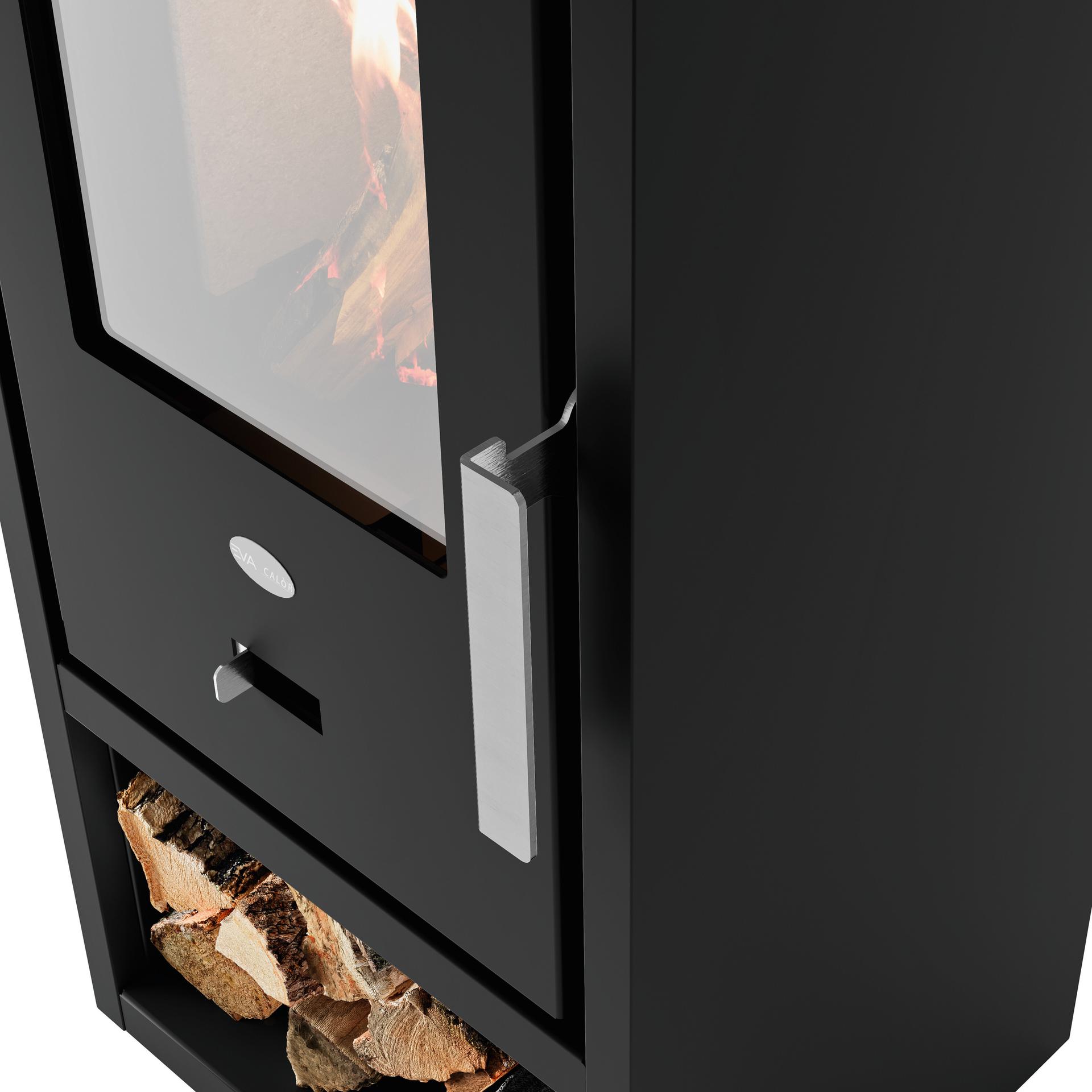

Compact and essential design with steel casing and firewood drawer. Vermiculite combustion chamber and combustion air regulator. Removable ash drawer for ash collection in a separate compartment. Top flue connection.
Technical Data |
|
|
|
|---|---|---|---|
| SKU |
HECWR9016045100
|
HECWR9016045200
|
|
| General data | |||
| Nominal heat output | kW |
5.00
|
|
| Heatable volume | m3 |
100
|
|
| Efficiency at rated power | % |
85.50
|
|
| Sealed chamber |
|
||
| Fuel | |||
| Hourly consumption | kg/h |
1.40
|
|
| Wood length | cm |
20
|
|
| Fire mouth width | mm | ||
| Fire mouth height | mm | ||
| Hearth width | mm |
240
|
|
| Hearth depth | mm |
240
|
|
| Hearth height | mm |
370
|
|
| Connections | |||
| Flue outlet size | mm |
150
|
|
| Flue position |
Top
|
||
| Air intake pipe | mm | ||
| Design | |||
| External facing |
Steel
|
||
| Design style |
Traditional
|
||
| Design shape |
Square
|
||
| Energy Efficiency | |||
| Energy class |
|
||
| Product Variants | |||
| Color |
|
|
|
| Physical Data | |||
| Dimensions (L x W x H) | mm | 406 x 353 x 915 | 406 x 353 x 915 |
| Net Weight | kg | 62.0 | 62.0 |
