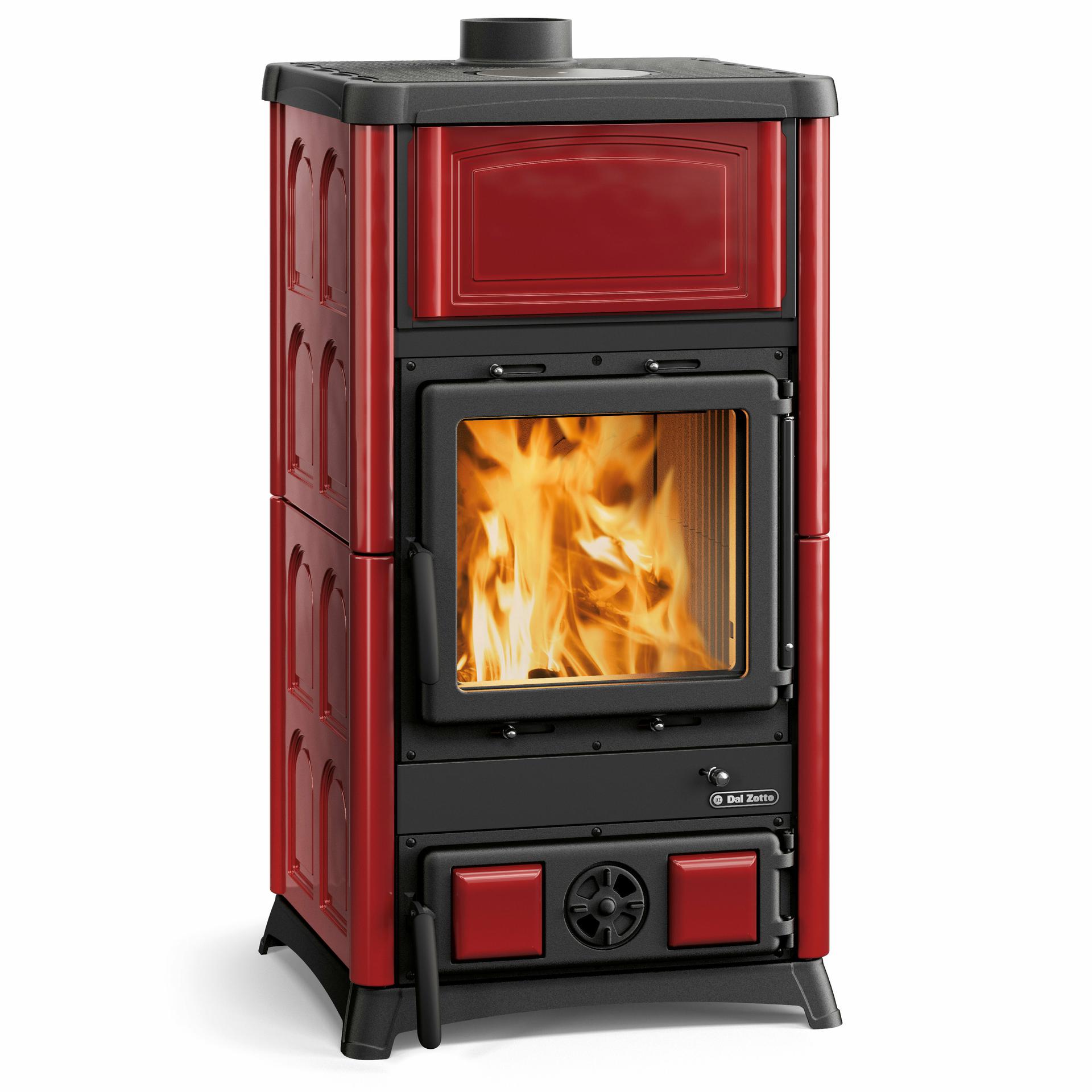

Wood stove with external facing in majolica. Adjustable primary and secondary air, preset tertiary air with post combustion system.
Discontinued
Wood burning stove with majolica external facing. Total cast-iron hearth. Enameled cast iron door, base and top. Adjustable primary and secondary air, pre-set tertiary air with post- combustion system.
Technical Data |
Discontinued
|
Discontinued
|
|
|---|---|---|---|
| SKU |
HDZWR1612800
|
HDZWR1612803
|
|
| General data | |||
| Nominal heat output | kW |
8.30
|
|
| Heatable volume | m3 |
238
|
|
| Efficiency at rated power | % |
86.40
|
|
| Sealed chamber |
|
||
| Fuel | |||
| Hourly consumption | kg/h |
2.25
|
|
| Wood length | cm |
25
|
|
| Fire mouth width | mm | ||
| Fire mouth height | mm | ||
| Hearth width | mm | ||
| Hearth depth | mm | ||
| Hearth height | mm | ||
| Connections | |||
| Flue outlet size | mm |
130
|
|
| Flue position |
Top
|
||
| Air intake pipe | mm | ||
| Design | |||
| External facing |
Majolica
|
||
| Design style |
Traditional
|
||
| Design shape |
Square
|
||
| Energy Efficiency | |||
| Energy class |
|
||
| Product Variants | |||
| Color |
|
|
|
| Physical Data | |||
| Dimensions (L x W x H) | mm | 559 x 550 x 1035 | 559 x 550 x 1035 |
| Net Weight | kg | 178.0 | 178.0 |
