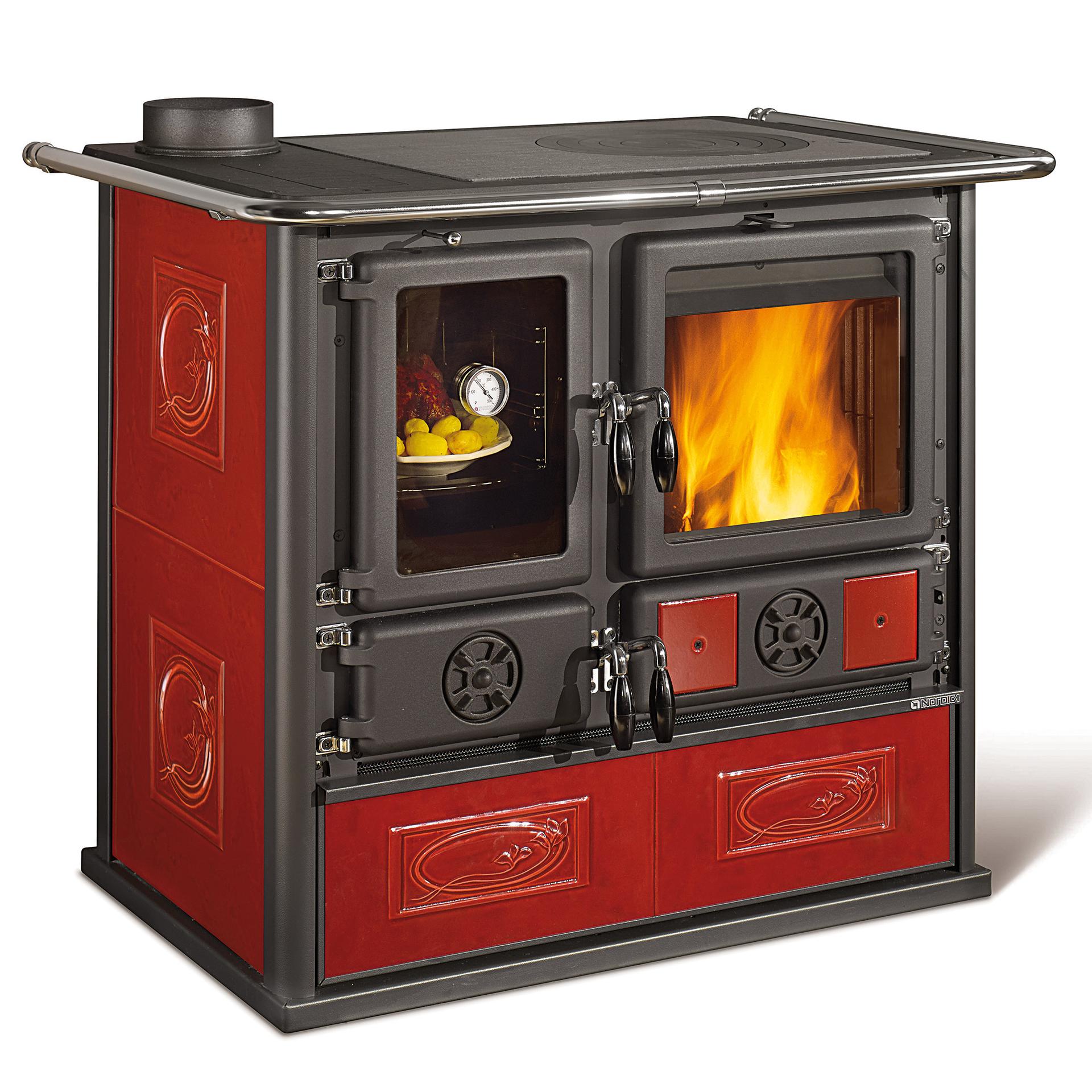

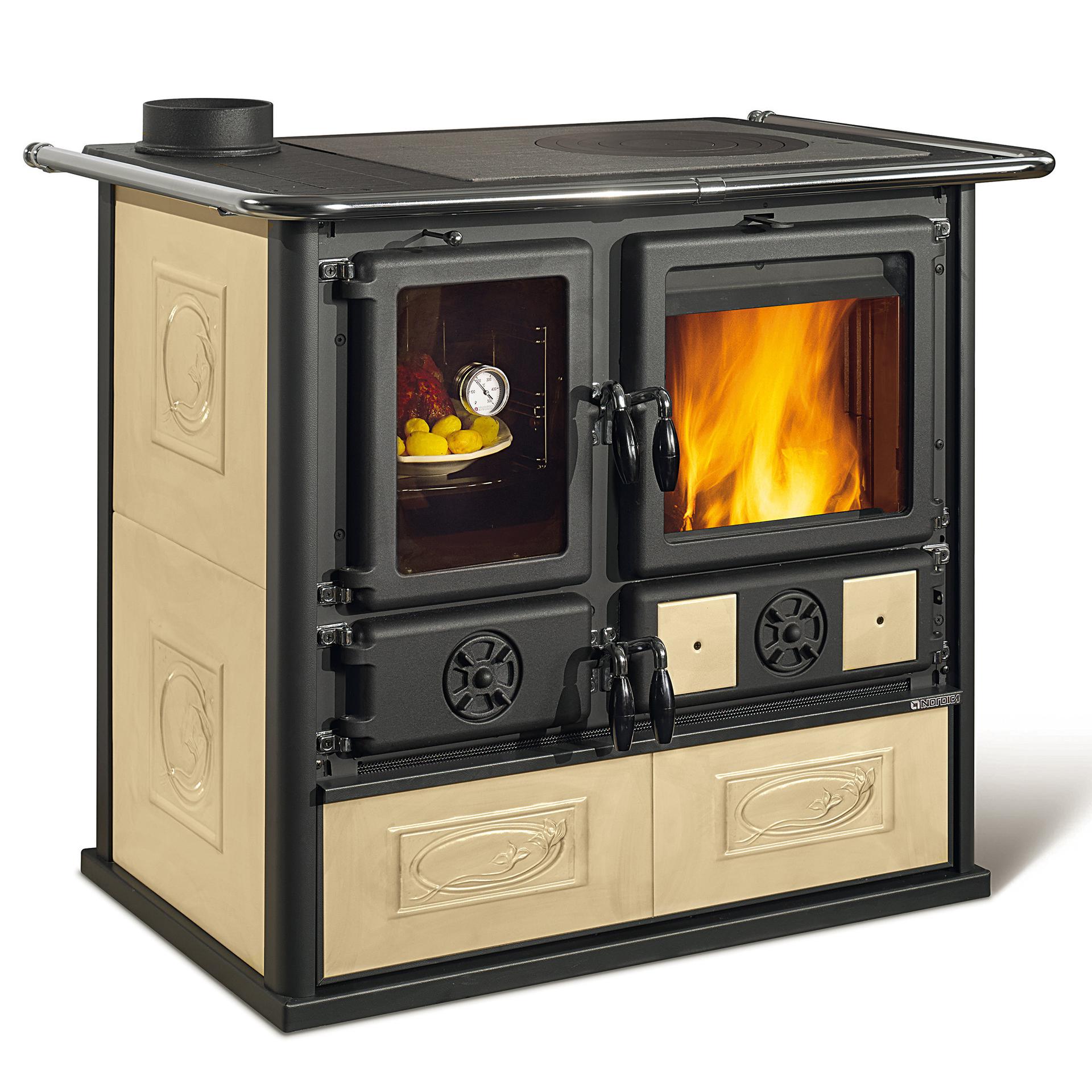

Wood burning cooker with wide fire vision having upper left or rear left smoke outlet. Top cooking plate and rings in polished cast-iron. Internal facing of the hearth in cast iron and refractory. Extractable wood drawer. Fire door in cast iron with double glass. As standard a kit of 2 black tiles 10x10 cm.
Adjustable primary and secondary air for a better combustion control and low emissions.
Porcelain enamelled steel oven with chromed rack equipped with enamelled backing tray.
Doors in cast iron
The high-quality cast-iron doors are made to last and ensure perfect sealing at all times.
Glass cleaning system
A system of pre-heated air which removes any deposit from the fire-door glass.
Outdoor air intake - ASC
A particular connection system which allows to introduce air from the outside into the pre-heated environment around the fire-box.
Post combustion
The combustion system developed by La Nordica-Extraflame allows, due to a secondary/tertiary air system, a post combustion which significantly reduces emissions.
Technical Data |
|
|
|
|---|---|---|---|
| SKU |
GLNCW7015060
|
GLNCW7015063
|
|
| General data | |||
| Nominal heat output | kW |
8.20
|
|
| Heatable volume | m3 |
235
|
|
| Efficiency at rated power | % |
86.50
|
|
| Fuel | |||
| Hourly consumption | kg/h |
2.30
|
|
| Wood length | cm |
22
|
|
| Fire mouth width | mm |
349
|
|
| Fire mouth height | mm |
235
|
|
| Hearth width | mm |
374
|
|
| Hearth depth | mm |
320
|
|
| Hearth height | mm |
290
|
|
| Connections | |||
| Flue outlet size | mm |
150
|
|
| Flue position |
Top left
|
||
| Air intake pipe | mm |
100
|
|
| Cooking and baking | |||
| Cooking plate |
Cast iron with rings
|
||
| Oven capacity | l |
28
|
|
| Oven width | mm |
245
|
|
| Oven depth | mm |
384
|
|
| Oven height | mm |
300
|
|
| Design | |||
| Installation mode |
Free standing
|
||
| External facing |
Ceramics
|
||
| Design style |
Rustic
Traditional
|
||
| Energy Efficiency | |||
| Energy class |
|
||
| Product Variants | |||
| Color |
|
|
|
| Physical Data | |||
| Dimensions (L x W x H) | mm | 1030 x 650 x 851 | 1030 x 650 x 851 |
| Net Weight | kg | 183.0 | 183.0 |
