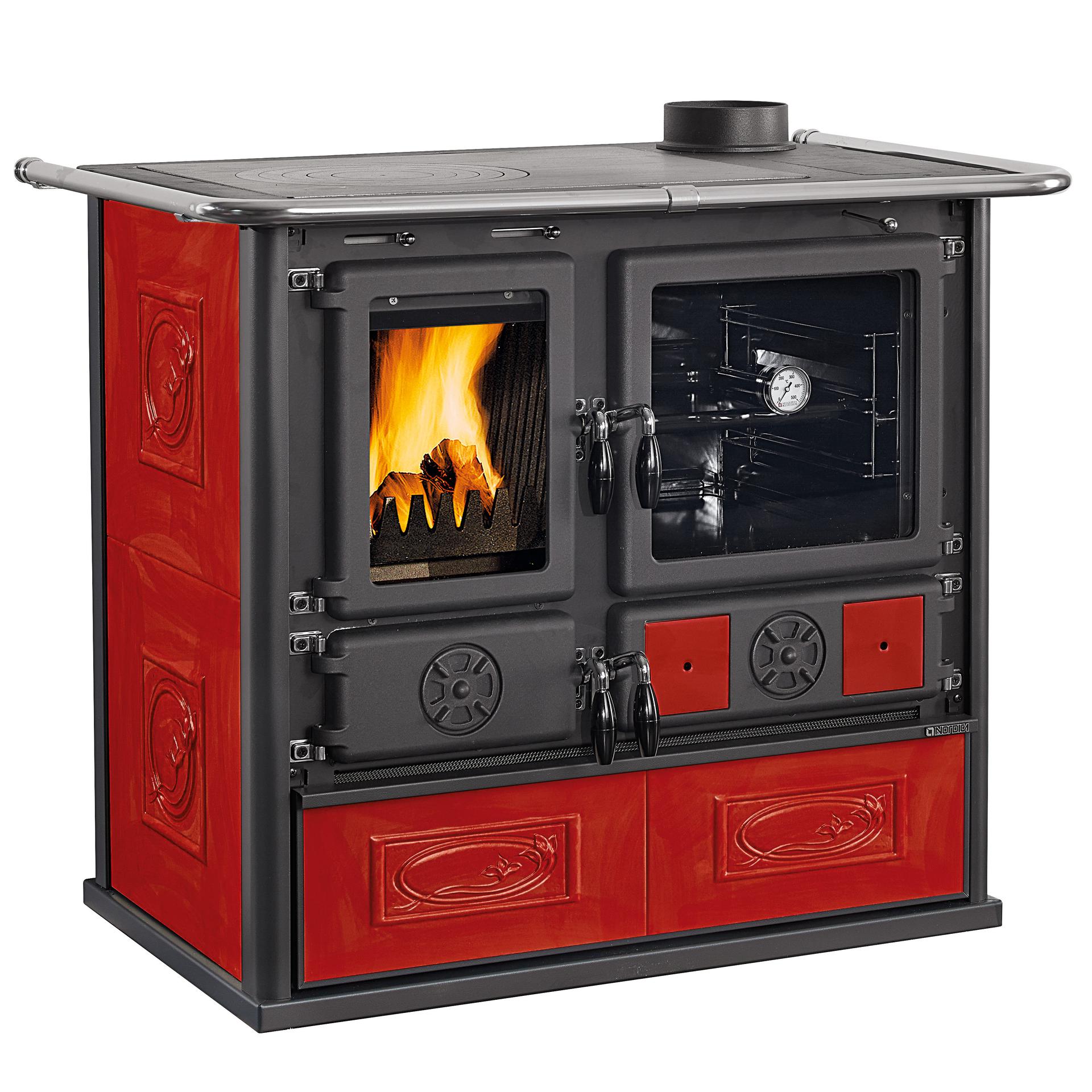

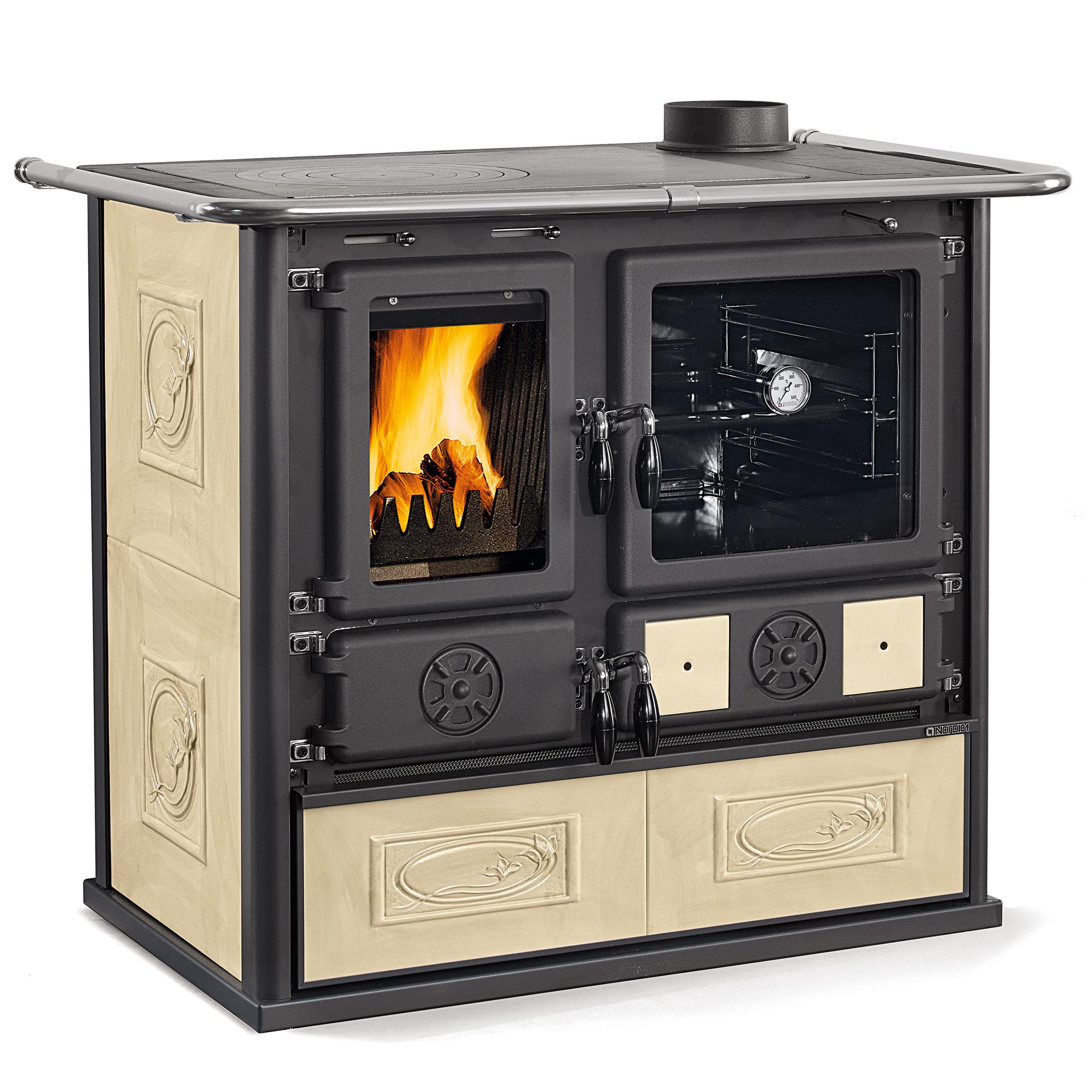

Traditional design wood-burning cooker with liberty majolica covering. The top plate and the rings are in polished cast iron. Doors and frames in enameled cast iron. A spacious enamelled steel oven for baking.
Adjustable primary and secondary air with a single draft device for better combustion control. The post-combustion system ensures low emissions.
The product is delivered in separate packages: body product and cladding kit.
Doors in cast iron
The high-quality cast-iron doors are made to last and ensure perfect sealing at all times.
Glass cleaning system
A system of pre-heated air which removes any deposit from the fire-door glass.
Outdoor air intake - ASC
A particular connection system which allows to introduce air from the outside into the pre-heated environment around the fire-box.
Post combustion
The combustion system developed by La Nordica-Extraflame allows, due to a secondary/tertiary air system, a post combustion which significantly reduces emissions.
Technical Data |
|
|
|
|---|---|---|---|
| SKU |
GLNCW7015200
|
GLNCW7015201
|
|
| General data | |||
| Nominal heat output | kW |
8.80
|
|
| Heatable volume | m3 |
252
|
|
| Efficiency at rated power | % |
85.40
|
|
| Fuel | |||
| Hourly consumption | kg/h |
2.50
|
|
| Wood length | cm |
30
|
|
| Fire mouth width | mm |
210
|
|
| Fire mouth height | mm |
265
|
|
| Hearth width | mm |
270
|
|
| Hearth depth | mm |
370
|
|
| Hearth height | mm |
302
|
|
| Connections | |||
| Flue outlet size | mm |
150
|
|
| Flue position |
Rear right
Top right
|
||
| Air intake pipe | mm | ||
| Cooking and baking | |||
| Cooking plate |
Cast iron with rings
|
||
| Oven capacity | l |
41
|
|
| Oven width | mm |
330
|
|
| Oven depth | mm |
410
|
|
| Oven height | mm |
300
|
|
| Design | |||
| Installation mode |
Free standing
|
||
| External facing |
Ceramics
|
||
| Design style |
Traditional
|
||
| Energy Efficiency | |||
| Energy class |
 |
||
| Product Variants | |||
| Color |
|
|
|
| Physical Data | |||
| Dimensions (L x W x H) | mm | 1030 x 650 x 851 | 1030 x 650 x 851 |
| Net Weight | kg | 200.0 | 183.0 |
