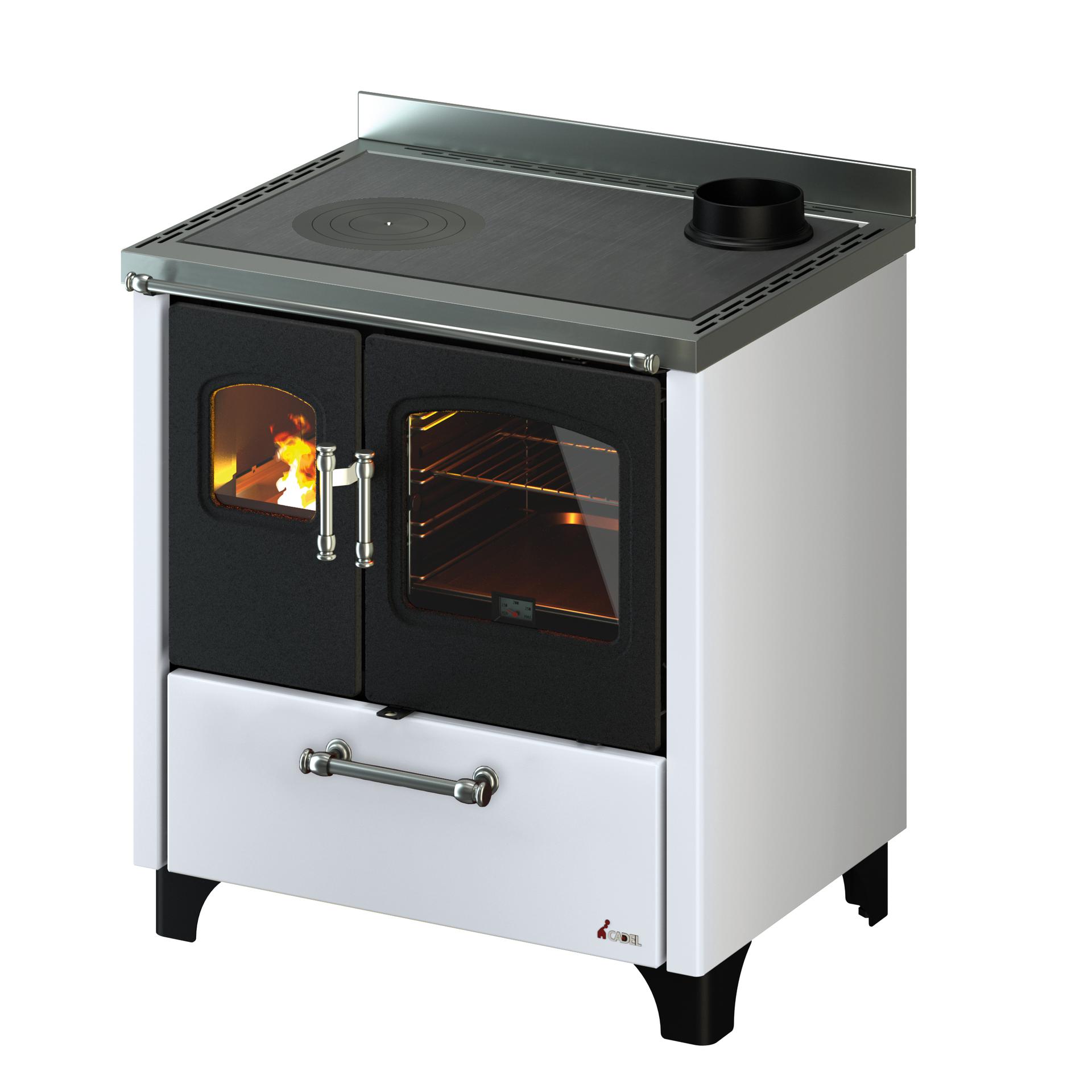

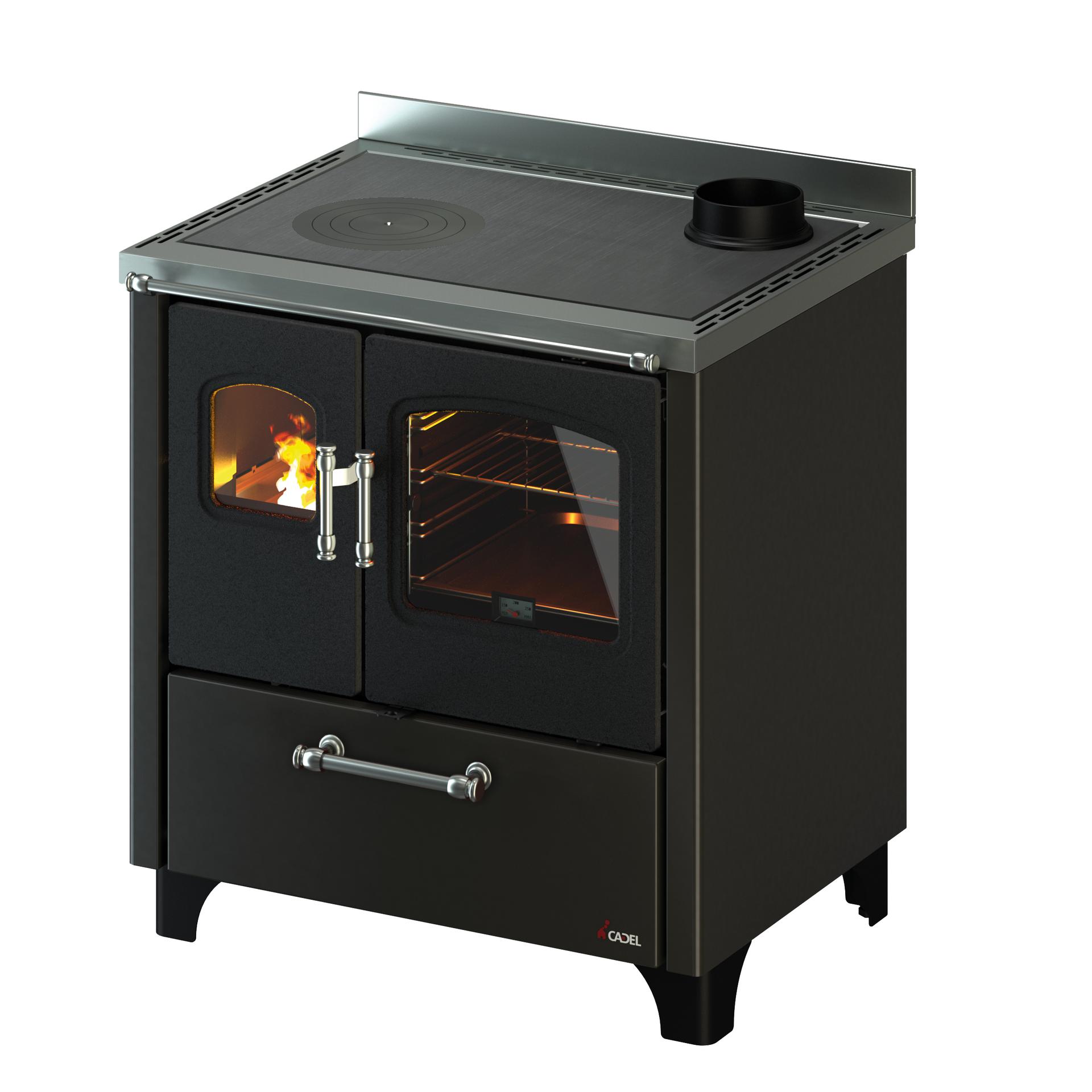

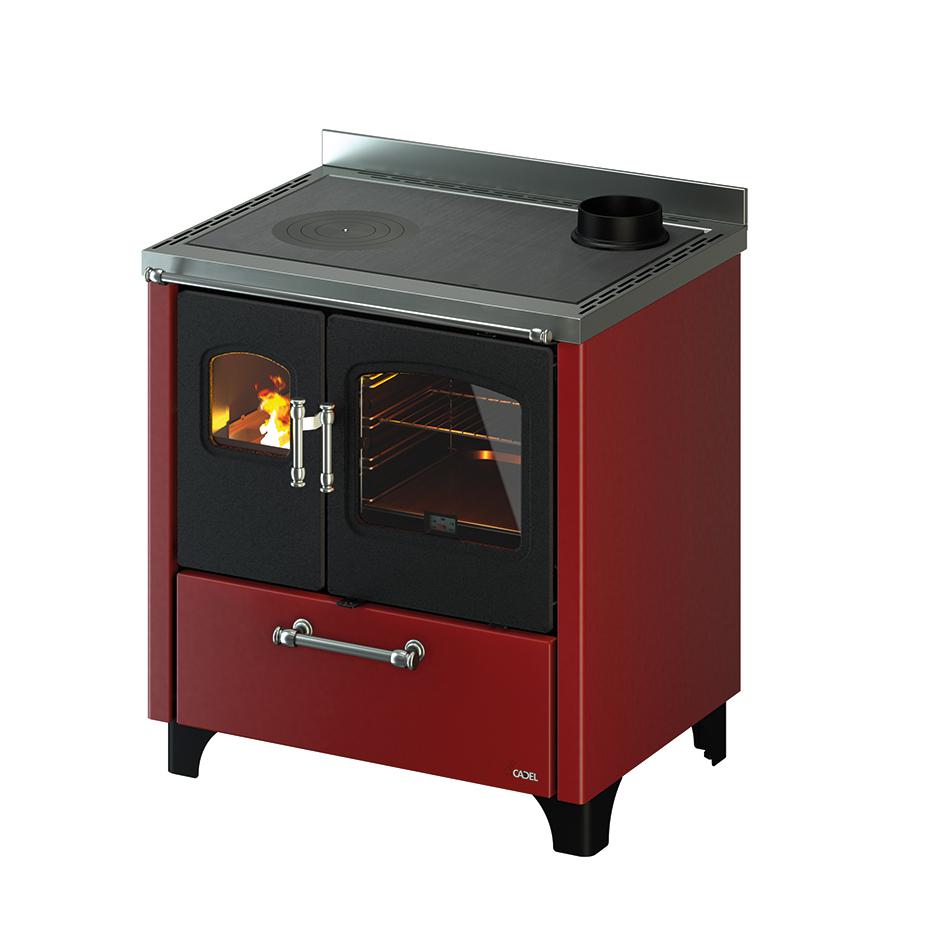

Freestanding or built-in wood-fired cooker with cast-iron doors, hot-air ventilation and an illuminated oven.
Free-standing or built-in wood cooker suit any setting. They feature cast iron doors, elegant steel handles and handrail, and combustion chamber with refractory material interior. The accessories include decorative feet and a steel base.
Top cooking plate with rings in cast iron.
Equipped as standard with ventilation and light kit.
Built-in
Ready to be installed directly into your kitchen or furniture structure.
Cast iron door
Door made to last and ensure perfect sealing in times.
Cooking
Best for cooking.
Free Standing
Self-contained unit that stands on its own.
Refractory stone inner with 2nd combustion air
Efficient burning.
Ventilation and light kit
Heating faster with ventilation. More visibility inside the oven.
View on the oven
Baking with visual control for better results.
Technical Data |
|
|
|
|
|---|---|---|---|---|
| SKU |
GCDCW71220038
|
GCDCW71220039
|
GCDCW71220040
|
|
| General data | ||||
| Nominal heat output | kW |
7.50
|
||
| Heatable volume | m3 |
214
|
||
| Efficiency at rated power | % |
85.50
|
||
| Fuel | ||||
| Hourly consumption | kg/h |
2.10
|
||
| Wood length | cm |
33
|
||
| Fire mouth width | mm |
172
|
||
| Fire mouth height | mm |
167
|
||
| Hearth width | mm | |||
| Hearth depth | mm | |||
| Hearth height | mm | |||
| Connections | ||||
| Flue outlet size | mm |
140
|
||
| Flue position |
Rear right
Top right
|
|||
| Air intake pipe | mm |
80
|
||
| Cooking and baking | ||||
| Cooking plate |
Cast iron with rings
|
|||
| Oven capacity | l |
40
|
||
| Oven width | mm |
330
|
||
| Oven depth | mm |
420
|
||
| Oven height | mm |
290
|
||
| Design | ||||
| Installation mode |
Build-in
Free standing
|
|||
| External facing |
Steel
|
|||
| Design style |
Modern
Traditional
|
|||
| Energy Efficiency | ||||
| Energy class |
 |
|||
| Product Variants | ||||
| Color |
|
|
|
|
| Physical Data | ||||
| Dimensions (L x W x H) | mm | 795 x 600 x 860 | 795 x 600 x 860 | 795 x 600 x 860 |
| Net Weight | kg | 152.0 | 152.0 | 152.0 |
