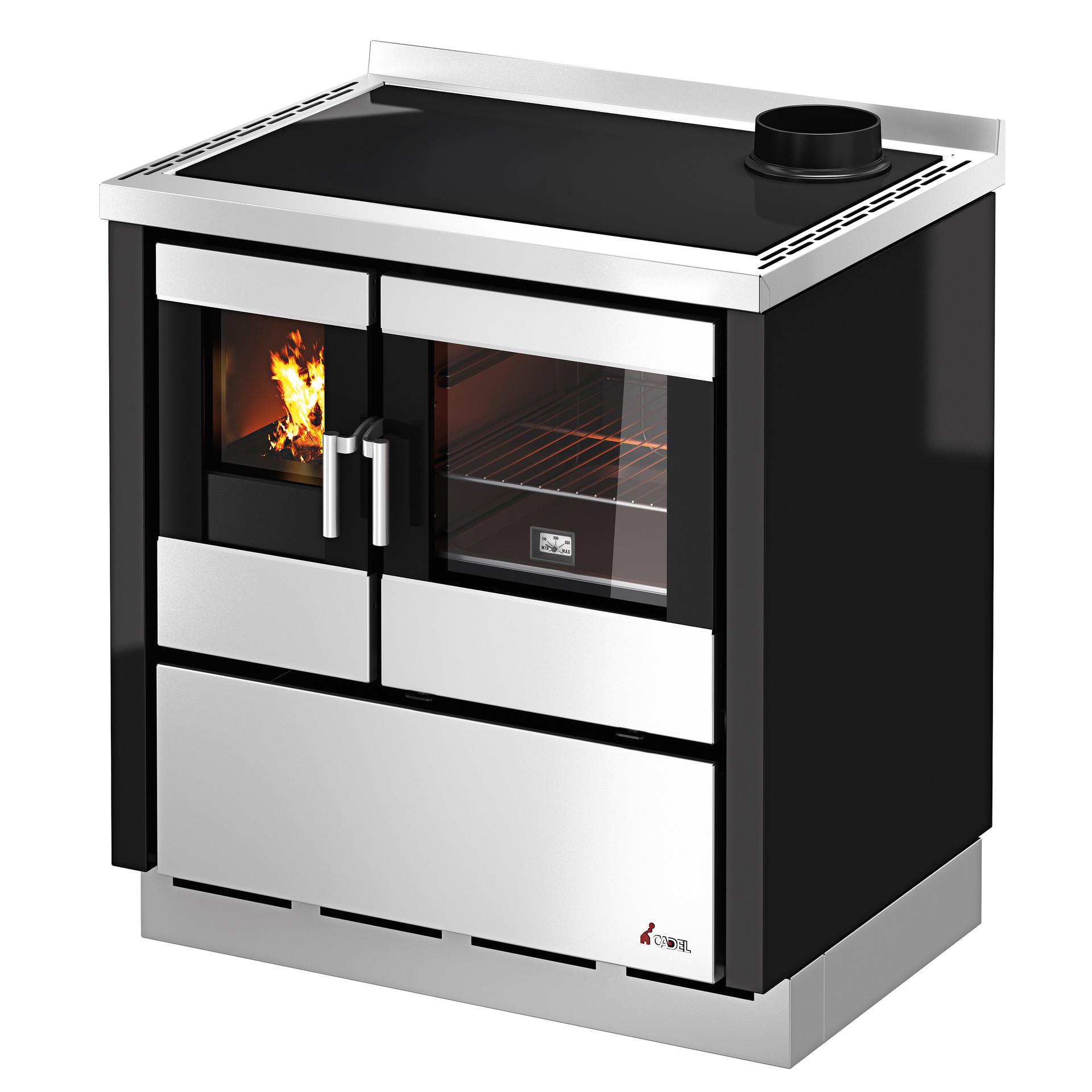

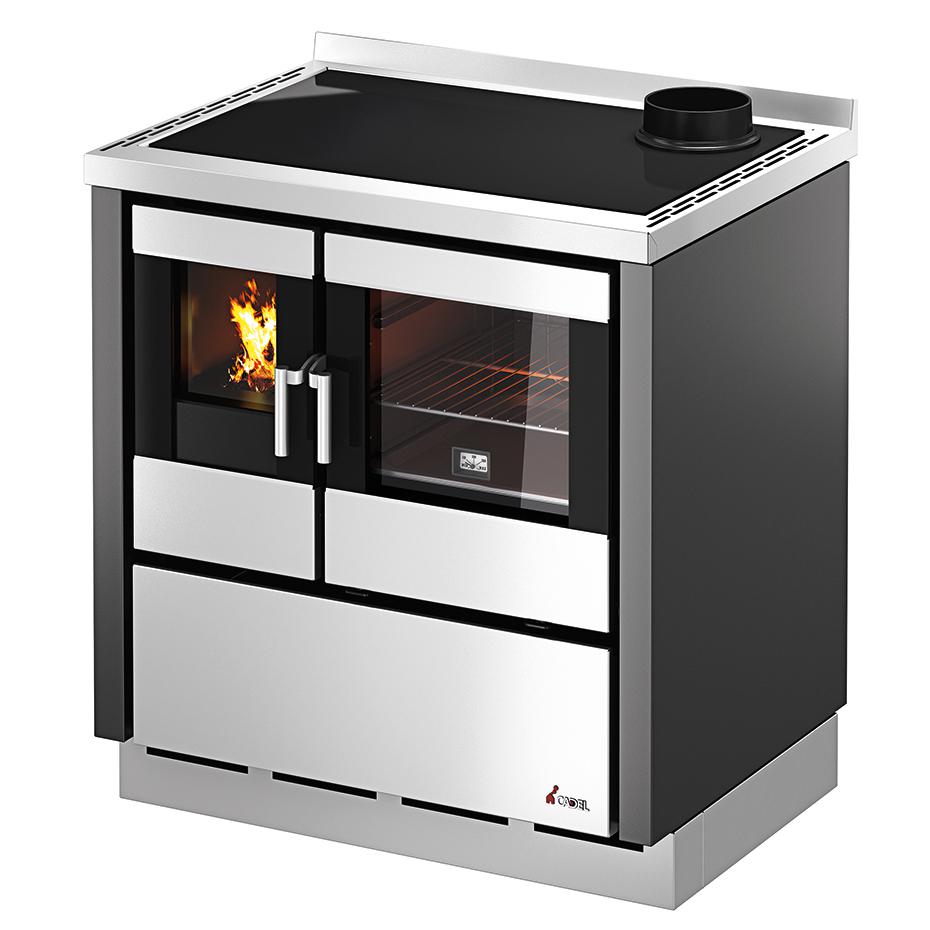

The striking element of this fitted wood cooker is the space devoted to the oven, the wide glass through which you can see the food cooking and the wide firebox, so you can have everything under control. The big, stainless steel oven ensures food is cooked evenly and the appliance is easy to clean, while the hob made of cast iron as standard is also available in a glass ceramic version.
Top cooking plate with rings in cast iron.
With the large, practical sliding drawer, everything is within easy reach and everything is designed to provide great functionality and economics to those who love to cook.
Built-in
Ready to be installed directly into your kitchen or furniture structure.
Cast iron door
Door made to last and ensure perfect sealing in times.
Cooking
Best for cooking.
Refractory stone inner with 2nd combustion air
Efficient burning.
View on the oven
Baking with visual control for better results.
Technical Data |
|
|
|
|---|---|---|---|
| SKU |
GCDCW71220002
|
GCDCW71220004
|
|
| General data | |||
| Nominal heat output | kW |
7.50
|
|
| Heatable volume | m3 |
214
|
|
| Efficiency at rated power | % |
82.50
|
|
| Fuel | |||
| Hourly consumption | kg/h |
2.10
|
|
| Wood length | cm |
33
|
|
| Fire mouth width | mm |
172
|
|
| Fire mouth height | mm |
167
|
|
| Hearth width | mm | ||
| Hearth depth | mm | ||
| Hearth height | mm | ||
| Connections | |||
| Flue outlet size | mm |
140
|
|
| Flue position |
Rear right
Top right
|
||
| Air intake pipe | mm |
80
|
|
| Cooking and baking | |||
| Cooking plate |
Cast iron with rings
|
||
| Oven capacity | l |
40
|
|
| Oven width | mm |
330
|
|
| Oven depth | mm |
420
|
|
| Oven height | mm |
167
|
|
| Design | |||
| Installation mode |
Build-in
Free standing
|
||
| External facing |
Steel
|
||
| Design style |
Modern
|
||
| Energy Efficiency | |||
| Energy class |
 |
||
| Product Variants | |||
| Color |
|
|
|
| Physical Data | |||

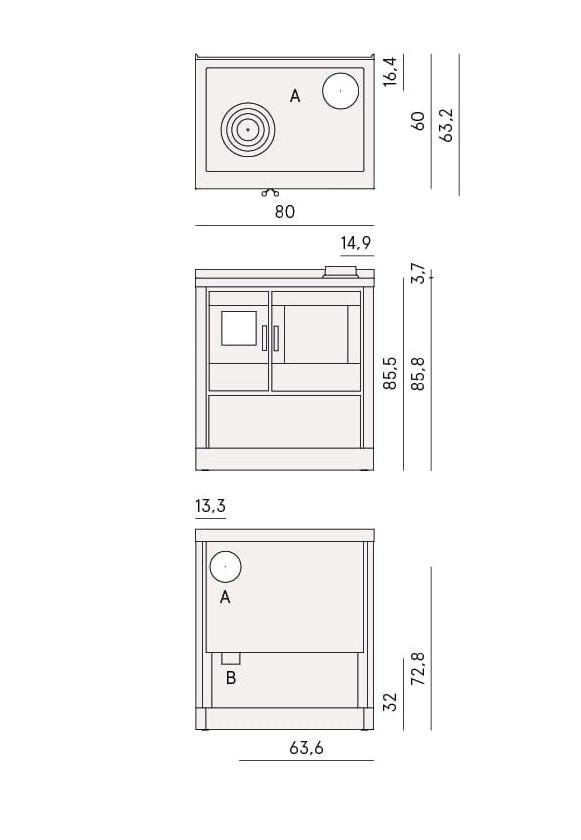

| Dimensions (L x W x H) | mm | 800 x 600 x 895 | 800 x 600 x 895 |
| Net Weight | kg | 138.2 | 138.2 |
