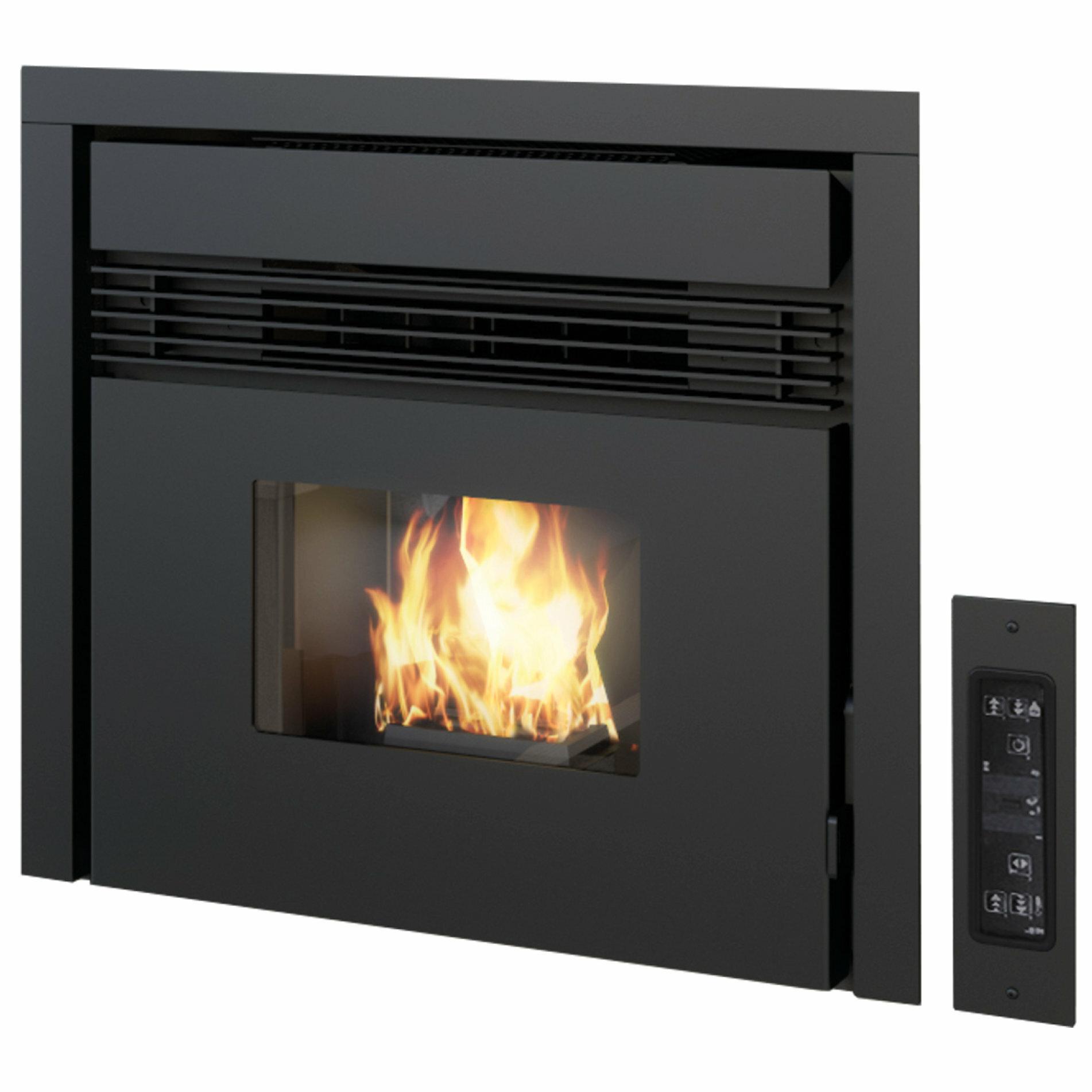

Pellet insert with frontal air blowing with essential design.
Start writing here...
Technical Data |
|
|
|---|---|---|
| SKU |
HPFPN901634000
|
|
| General data | ||
| Nominal heat output | kW |
7.50
|
| Minimum heat output | kW |
3.50
|
| Heatable volume | m3 |
160
|
| Efficiency at partial load | % |
88.50
|
| Efficiency at rated power | % |
90.50
|
| Sealed chamber |
|
|
| Fuel | ||
| Pellet hopper capacity | kg |
8.00
|
| Consumption at partial load | kg/h |
0.80
|
| Hourly consumption | kg/h |
1.60
|
| Connections | ||
| Flue outlet size | mm |
80
|
| Flue position |
Top
|
|
| Air intake pipe | mm |
51
|
| Energy Efficiency | ||
| Energy class |
|
|
| Physical Data | ||
| Dimensions (L x W x H) | mm | 613 x 463 x 559 |
| Net Weight | kg | 74.0 |
