Cast iron wood burning stove with small dimensions for insertion in small spaces.
Temporary Suspended

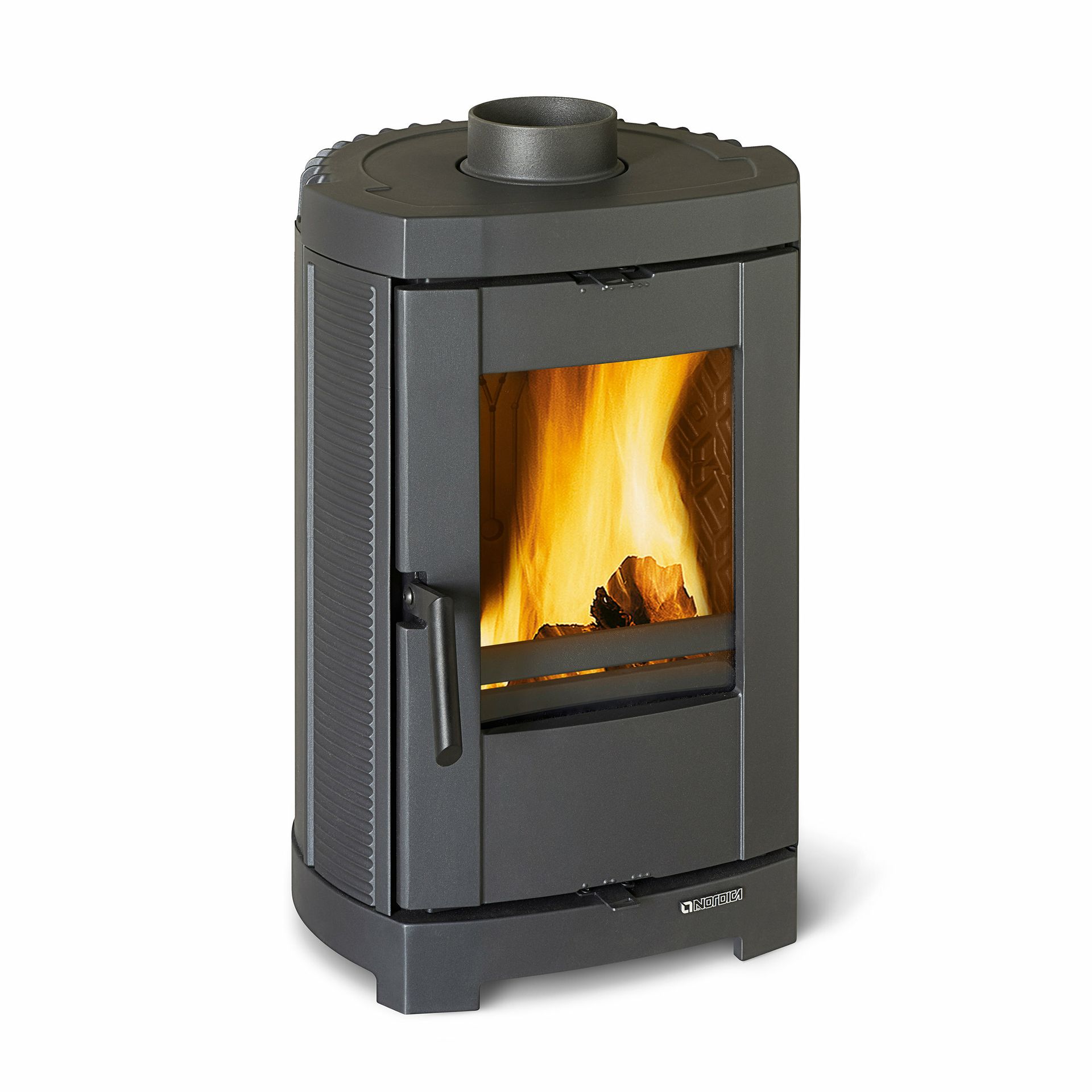

Wood burning stove with structure completely in enameled cast iron. Small dimensions for insertion in small spaces.
Adjustable primary and secondary air for a better combustion control and post combustion system for low emissions.
Doors in cast iron
The high-quality cast-iron doors are made to last and ensure perfect sealing at all times.
Glass cleaning system
A system of pre-heated air which removes any deposit from the fire-door glass.
Post combustion
The combustion system developed by La Nordica-Extraflame allows, due to a secondary/tertiary air system, a post combustion which significantly reduces emissions.
Technical Data |
|
|
|---|---|---|
| SKU |
HLNWR7119401
|
|
| General data | ||
| Nominal heat output | kW |
4.70
|
| Heatable volume | m3 |
134
|
| Efficiency at rated power | % |
81.00
|
| Sealed chamber |
|
|
| Fuel | ||
| Hourly consumption | kg/h |
1.40
|
| Wood length | cm |
25
|
| Fire mouth width | mm |
233
|
| Fire mouth height | mm |
214
|
| Hearth width | mm |
330
|
| Hearth depth | mm |
215
|
| Hearth height | mm |
294
|
| Connections | ||
| Flue outlet size | mm |
120
|
| Flue position |
Top
|
|
| Air intake pipe | mm | |
| Design | ||
| External facing |
Cast iron
|
|
| Design style |
Modern
|
|
| Design shape |
Angular
|
|
| Energy Efficiency | ||
| Energy class |
|
|
| Physical Data | ||
| Dimensions (L x W x H) | mm | 404 x 397 x 640 |
| Net Weight | kg | 70.0 |
