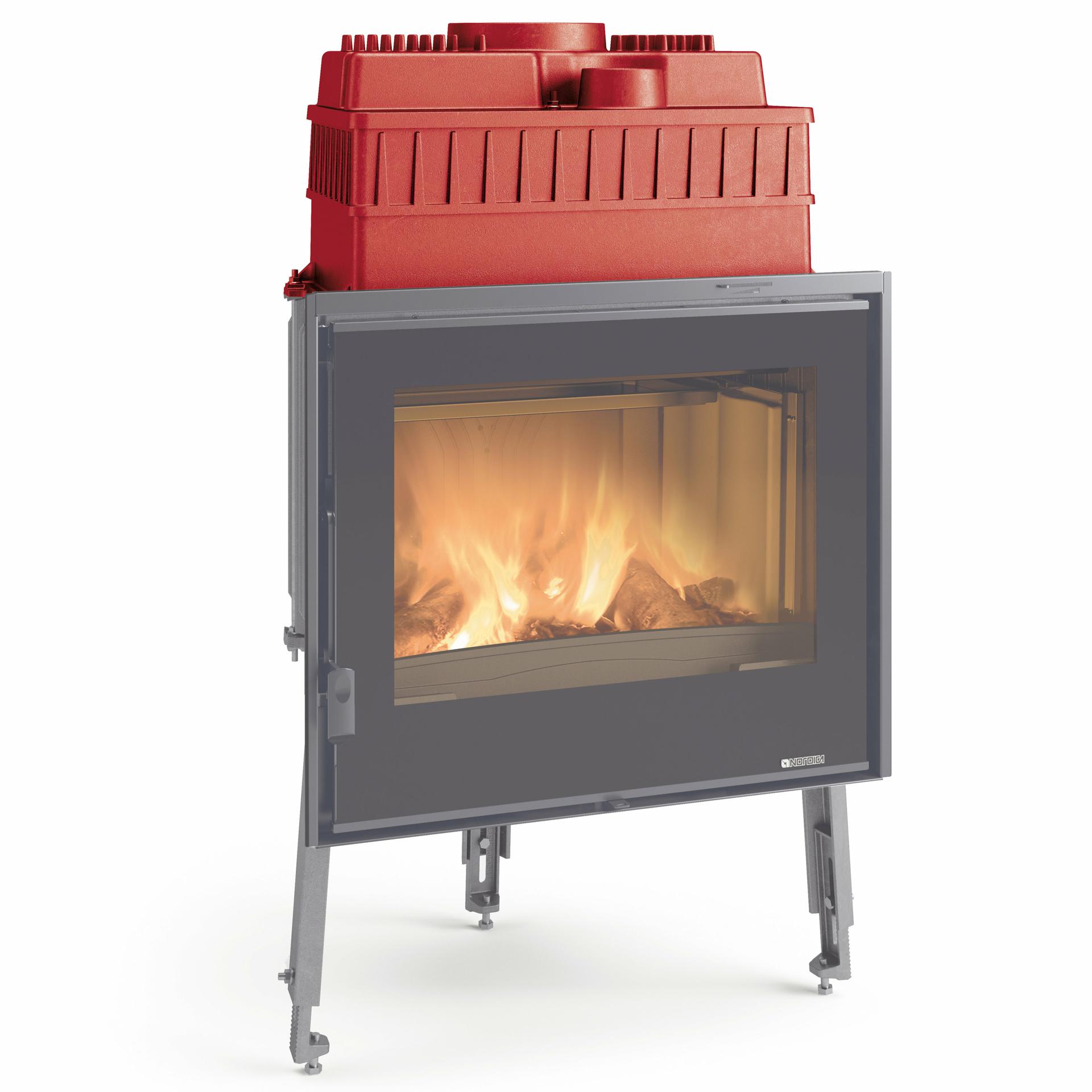

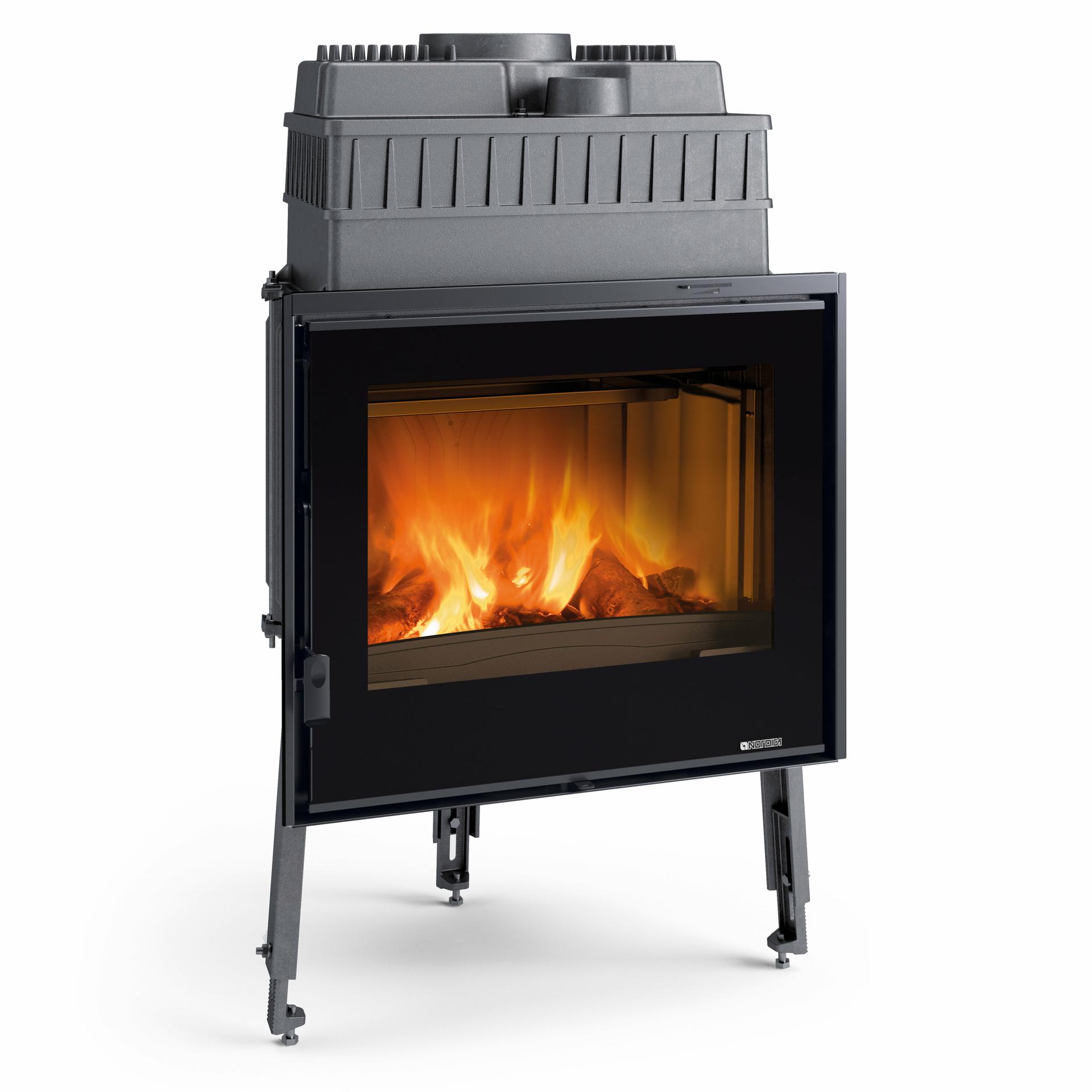

Wood burning hearth for fireplaces with Power Radiant System (PRS). Structure in cast iron. Internal facing of the hearth in cast iron and Nordiker. Adjustable primary and secondary air for a better combustion control. Post combustion system for low emissions. Ceramic glass.
As optional accessories for ventilation including carter and kit ventilation or kit wind air.
Direct outdoor air intake - BBC
Air intake system which draws fresh air from outside directly into the adjust system combustion regulation of the firebox of the appliance.
Doors in cast iron
The high-quality cast-iron doors are made to last and ensure perfect sealing at all times.
Glass cleaning system
A system of pre-heated air which removes any deposit from the fire-door glass.
Hearth in Nordiker
La Nordica-Extraflame uses a special material called Nordiker for the production of hearth walls refractories.
Post combustion
The combustion system developed by La Nordica-Extraflame allows, due to a secondary/tertiary air system, a post combustion which significantly reduces emissions.
Radiant system - PRS
Hight efficency Heat exchanger system
Technical Data |
Discontinued
|
|
|---|---|---|
| SKU |
HLNWF6017771
|
|
| General data | ||
| Nominal heat output | kW |
9.00
|
| Heatable volume | m3 |
258
|
| Efficiency at rated power | % |
85.30
|
| Sealed chamber |
|
|
| Fuel | ||
| Hourly consumption | kg/h |
2.50
|
| Wood length | cm |
30
|
| Fire mouth width | mm |
480
|
| Fire mouth height | mm |
288
|
| Hearth width | mm |
450
|
| Hearth depth | mm |
350
|
| Hearth height | mm |
315
|
| Connections | ||
| Flue outlet size | mm |
200
|
| Flue position |
Top
|
|
| Air intake pipe | mm |
100
|
| Energy Efficiency | ||
| Energy class |
|
|
| Physical Data | ||
| Dimensions (L x W x H) | mm | 710 x 498 x 1125 |
| Net Weight | kg | 172.0 |
