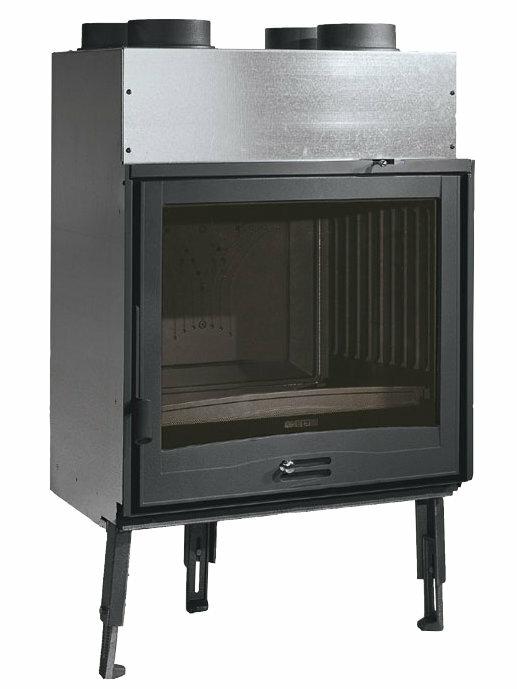

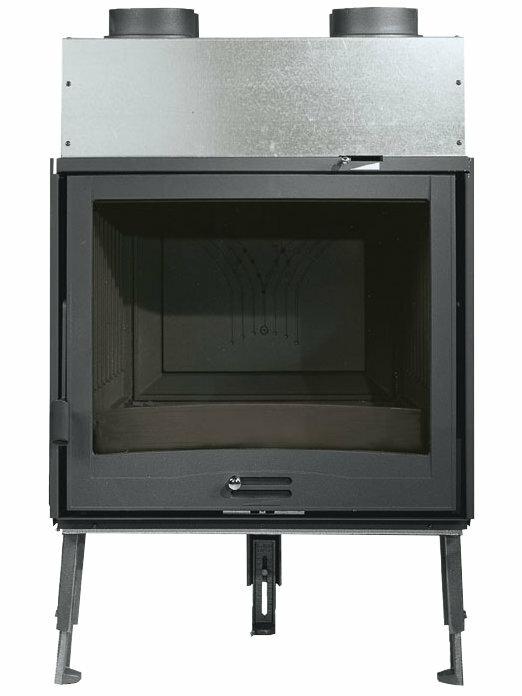

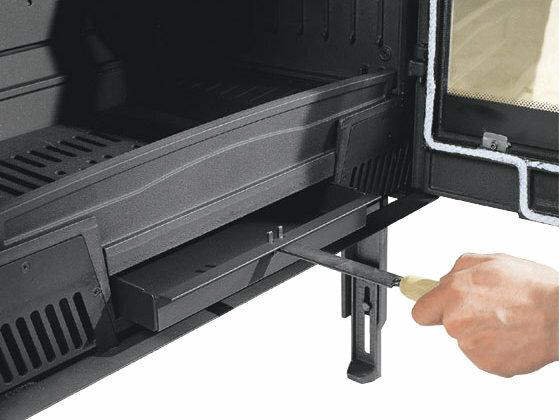

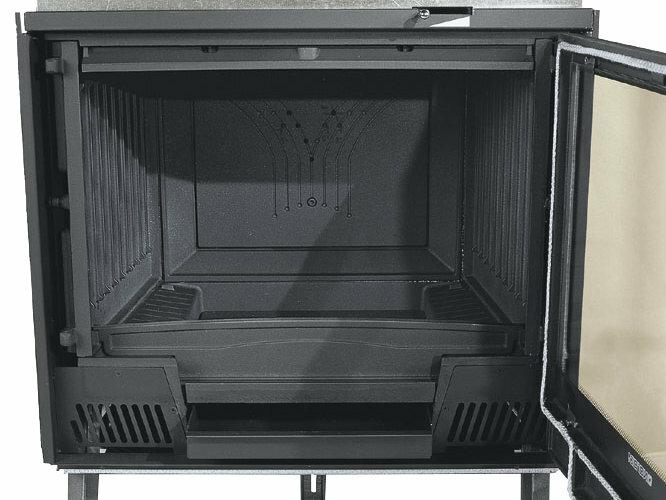

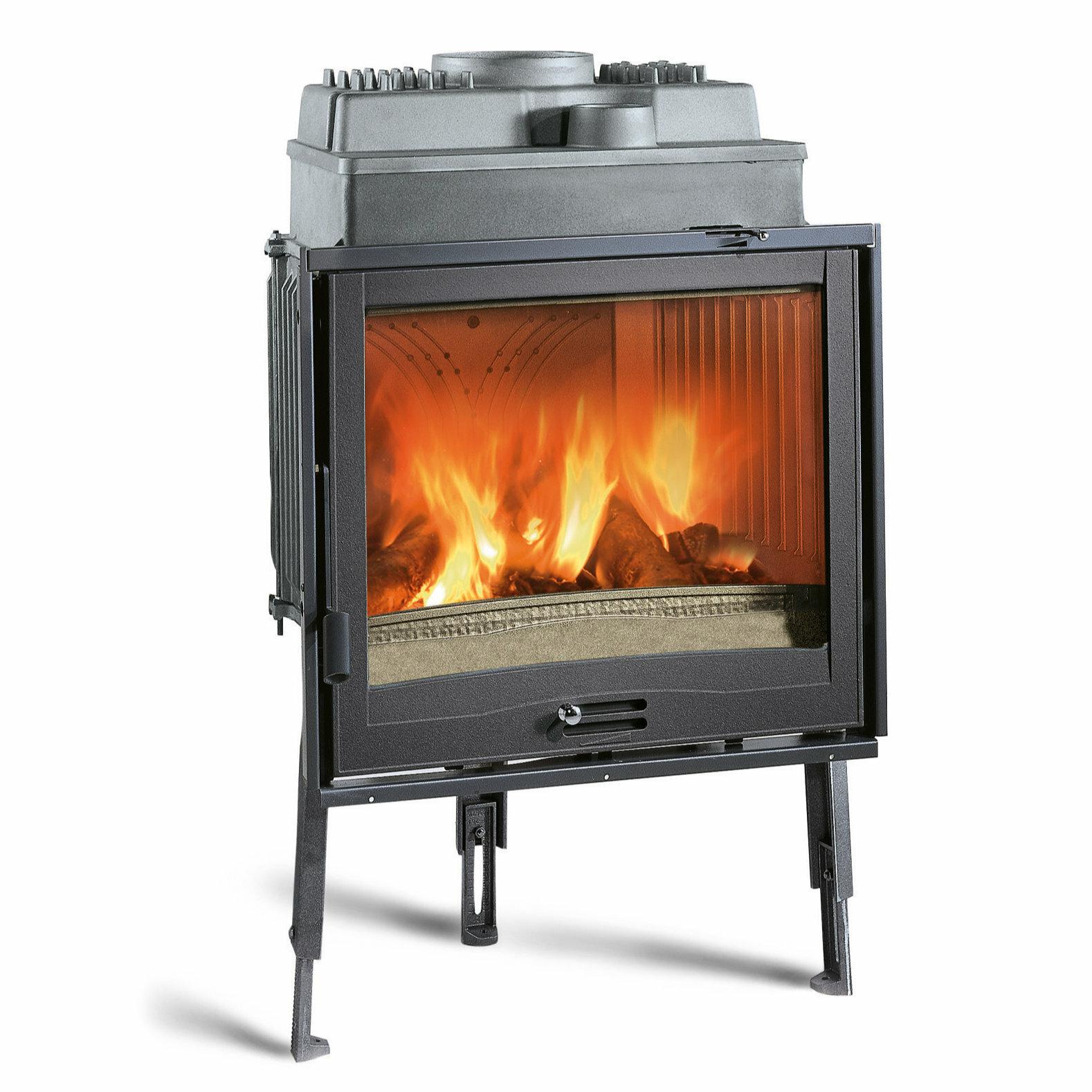

Wood burning hearth for fireplaces with structure and internal facing of the hearth in cast iron. Adjustable primary and secondary air for a better combustion control. Post combustion system for low emissions. Ceramic glass.
As optional accessories for ventilation including carter and kit ventilation or kit wind air.
Direct outdoor air intake - BBC
Air intake system which draws fresh air from outside directly into the adjust system combustion regulation of the firebox of the appliance.

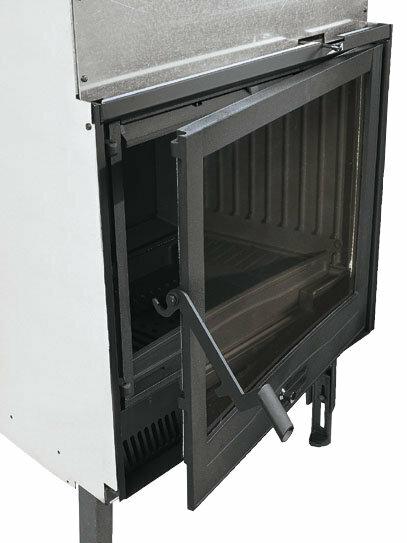

Doors in cast iron
The high-quality cast-iron doors are made to last and ensure perfect sealing at all times.
Glass cleaning system
A system of pre-heated air which removes any deposit from the fire-door glass.
Post combustion
The combustion system developed by La Nordica-Extraflame allows, due to a secondary/tertiary air system, a post combustion which significantly reduces emissions.
Radiant system - PRS
Hight efficency Heat exchanger system
Technical Data |
|
|
|---|---|---|
| SKU |
HLNWF6017770
|
|
| General data | ||
| Nominal heat output | kW |
9.10
|
| Heatable volume | m3 |
261
|
| Efficiency at rated power | % |
80.00
|
| Sealed chamber |
|
|
| Fuel | ||
| Hourly consumption | kg/h |
2.70
|
| Wood length | cm |
30
|
| Fire mouth width | mm |
565
|
| Fire mouth height | mm |
320
|
| Hearth width | mm |
520
|
| Hearth depth | mm |
360
|
| Hearth height | mm |
404
|

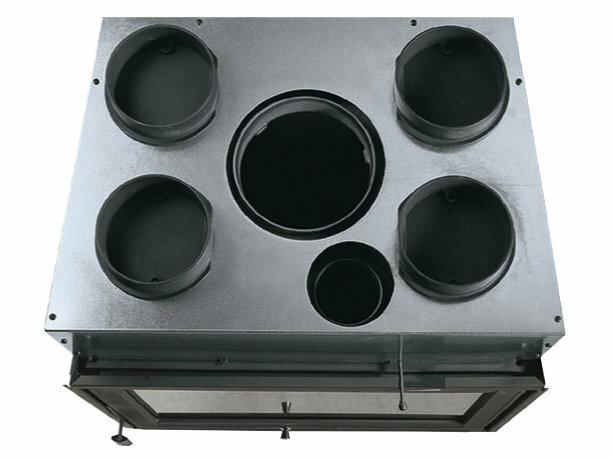

| Connections | ||
| Flue outlet size | mm |
200
|
| Flue position |
Top
|
|
| Air intake pipe | mm |
100
|

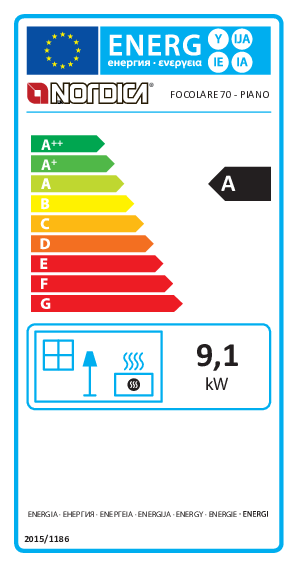

| Energy Efficiency | ||
| Energy class |
|
|
| Physical Data | ||
| Dimensions (L x W x H) | mm | 693 x 491 x 1025 |
| Net Weight | kg | 142.0 |
