Wood burning thermo cooker with open-tank exchange system and closed-tank connection system.
Central heating, cooking and baking with the single unit that can be a freestanding or a built-in unit. The stainless steel oven with thermometer includes removable tray holder guides, an aluminium tray and a tray holder grid. The combustion chamber can be reduced in size for use during the summer months. The thermo cooker is equipped with a stainless steel coil, circulation pump, anti-spill valve and solenoid valve for automatic loading. The open-tank exchange system and the closed-tank connection system provide an additional level of efficiency and safety.
Technical Data |
|
|
|---|---|---|
| SKU |
HECWE9016044900
|
|
| General data | ||
| Nominal heat output | kW |
15.80
|
| Nominal useful water power | kW |
10.50
|
| Heatable volume | m3 |
350
|
| Efficiency at rated power | % |
85.30
|
| Boiler capacity | l | |
| Fuel | ||
| Hourly consumption | kg/h |
4.30
|
| Wood length | cm |
30
|
| Fire mouth width | mm | |
| Fire mouth height | mm | |
| Hearth width | mm |
200
|
| Hearth depth | mm |
410
|
| Hearth height | mm |
450
|
| Connections | ||
| Flue outlet size | mm |
150
|
| Flue position |
Top
|
|
| Air intake pipe | mm | |
| Heating water delivery |
3/4''
|
|
| Heating water return |
3/4''
|
|
| Cooking and baking | ||
| Cooking plate |
Steel
|
|
| Oven capacity | l |
32
|
| Oven width | mm |
300
|
| Oven depth | mm |
385
|
| Oven height | mm |
280
|
| Design | ||
| Installation mode |
Build-in
Free standing
|
|
| External facing |
Steel
|
|
| Design style |
Modern
Traditional
|
|

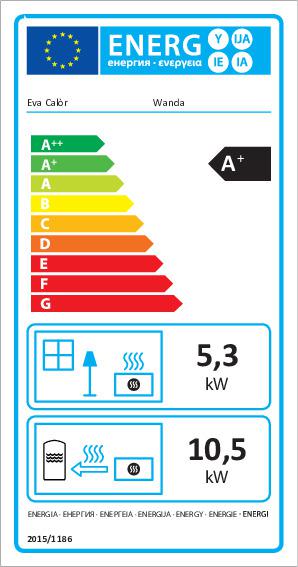

| Energy Efficiency | ||
| Energy class |
|
|
| Physical Data | ||
| Dimensions (L x W x H) | mm | 980 x 600 x 921 |
| Net Weight | kg | 320.0 |
