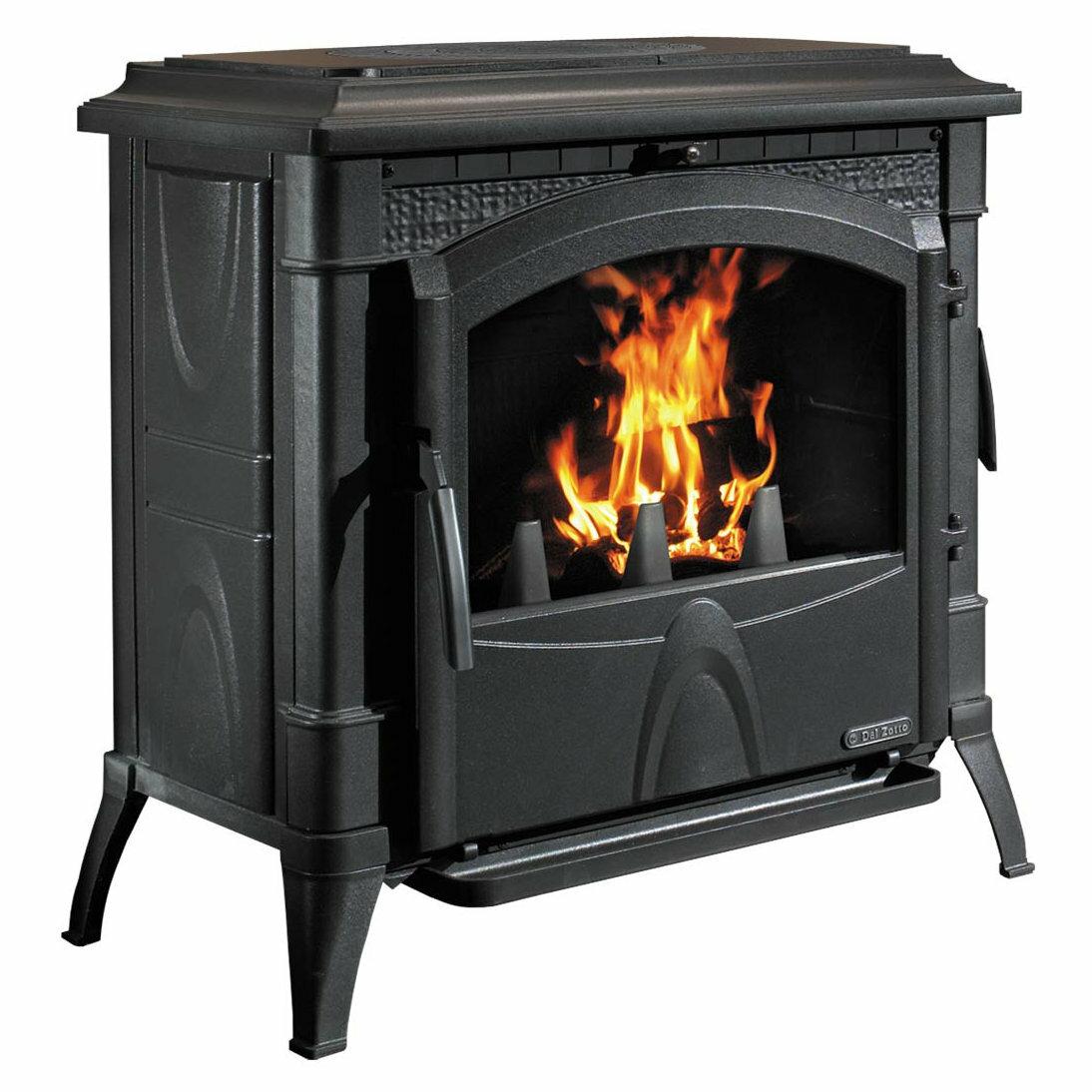

Solid enamel cast iron stove with frontal and side wood loading doors.
Discontinued

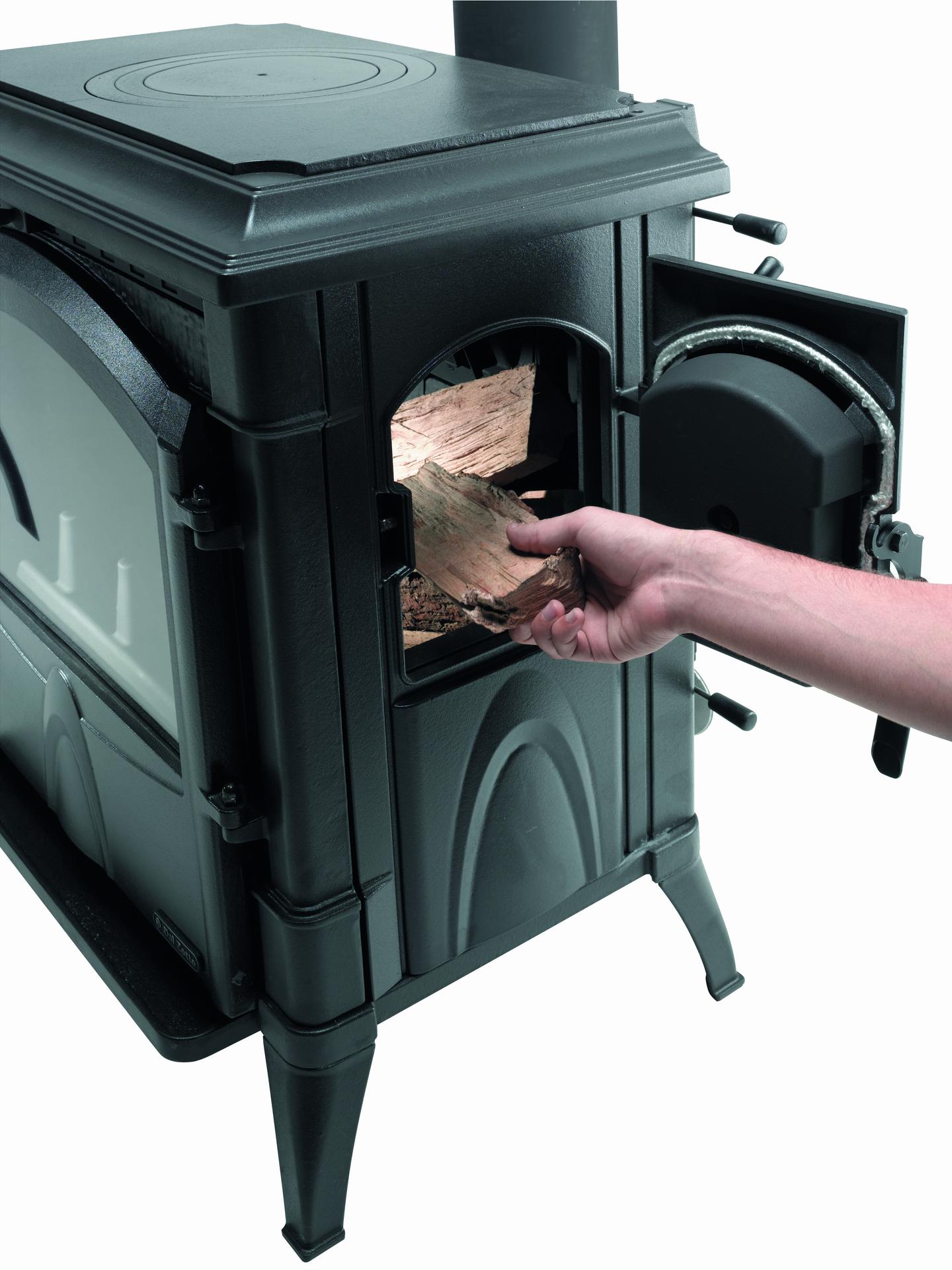

Stove completely made of cast iron with sider door for wood charging. Double combustion with primary and secondary air.
Technical Data |
Discontinued
|
|
|---|---|---|
| SKU |
HDZWR7619111
|
|
| General data | ||
| Nominal heat output | kW |
11.90
|
| Heatable volume | m3 |
338
|
| Efficiency at rated power | % |
82.00
|
| Sealed chamber |
|
|
| Fuel | ||
| Hourly consumption | kg/h |
3.20
|
| Wood length | cm |
25
|
| Fire mouth width | mm | |
| Fire mouth height | mm | |
| Hearth width | mm | |
| Hearth depth | mm | |
| Hearth height | mm | |
| Connections | ||
| Flue outlet size | mm |
150
|
| Flue position |
Top
|
|
| Air intake pipe | mm | |
| Design | ||
| External facing |
Cast iron
|
|
| Design style |
Rustic
|
|
| Design shape |
Square
|
|
| Energy Efficiency | ||
| Energy class |
|
|
| Physical Data | ||
| Dimensions (L x W x H) | mm | 810 x 664 x 777 |
| Net Weight | kg | 205.0 |
