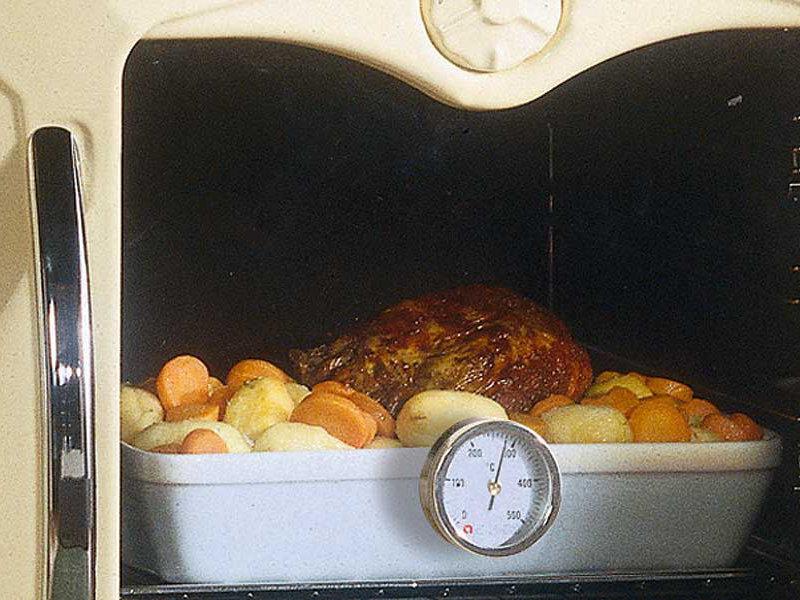

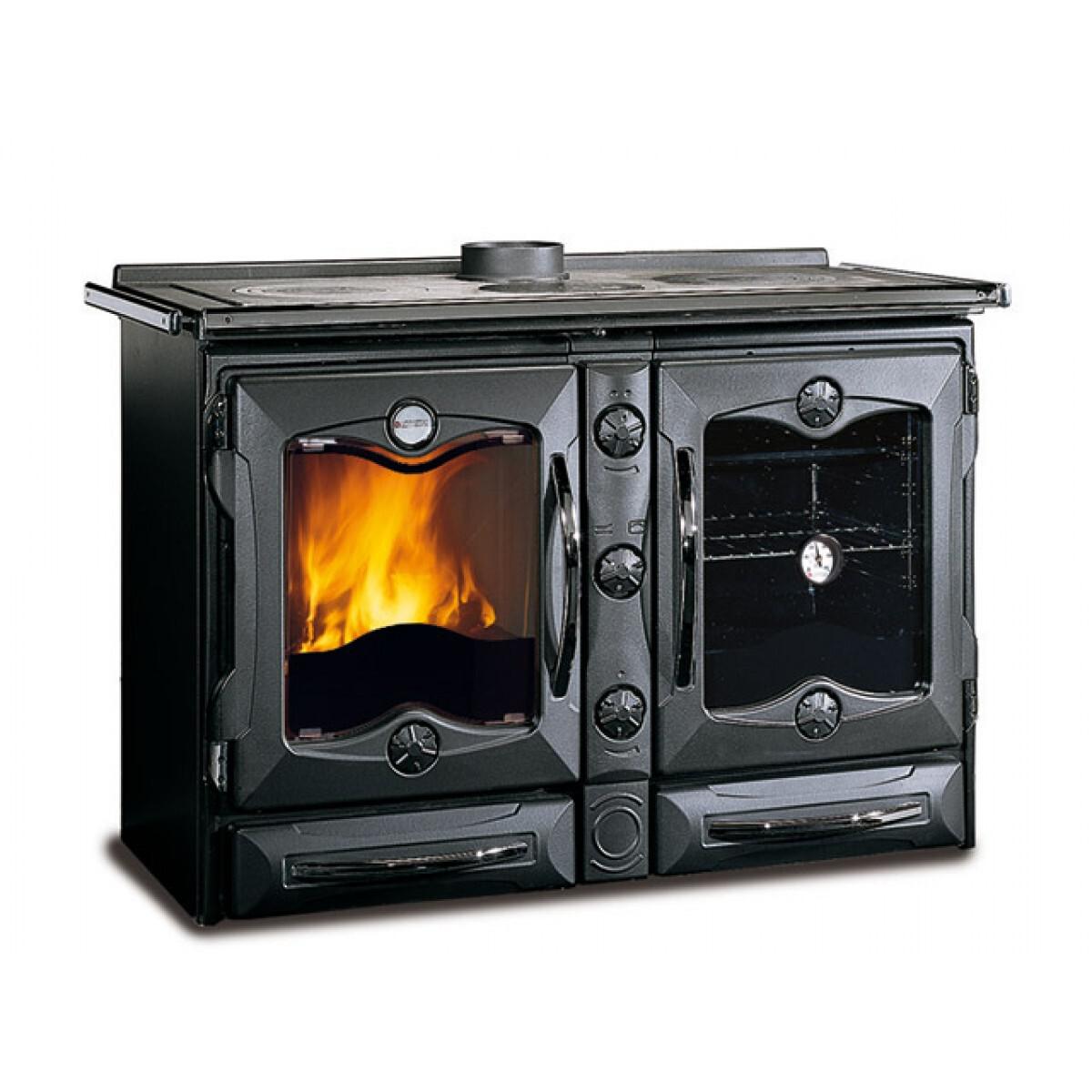

Wood cooker with large hearth and capacious enamelled steel oven. Internal facing of the hearth in cast iron and Nordiker. Top cooking plate with three rings in polished cast-iron. The doors, facade and frame are made of enameled cast iron, which if used correctly has almost an unlimited life and it requires a minimal maintenance.

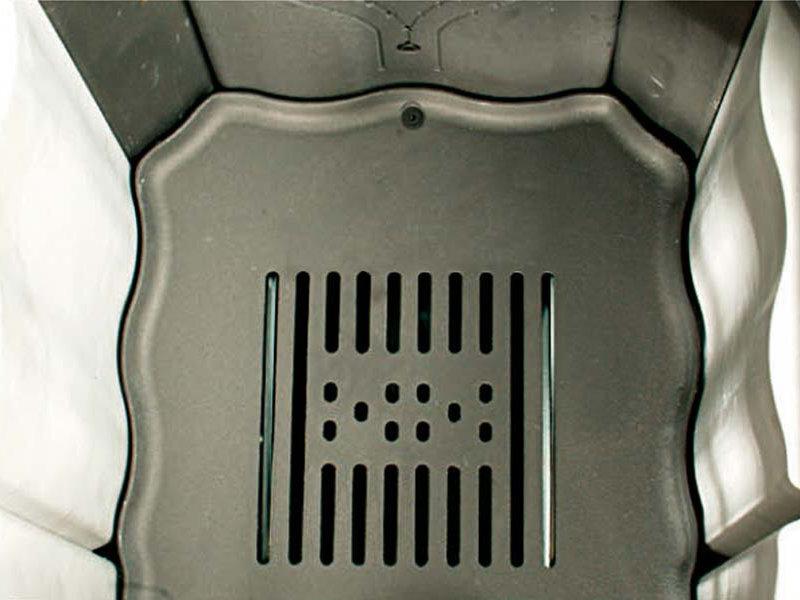

Efficient combustion with adjustable primary and secondary air with post combustion system for low emissions. Adjustable cast iron grate and fire door with double glass with a wide fire vision. Extracatable wood drawer.

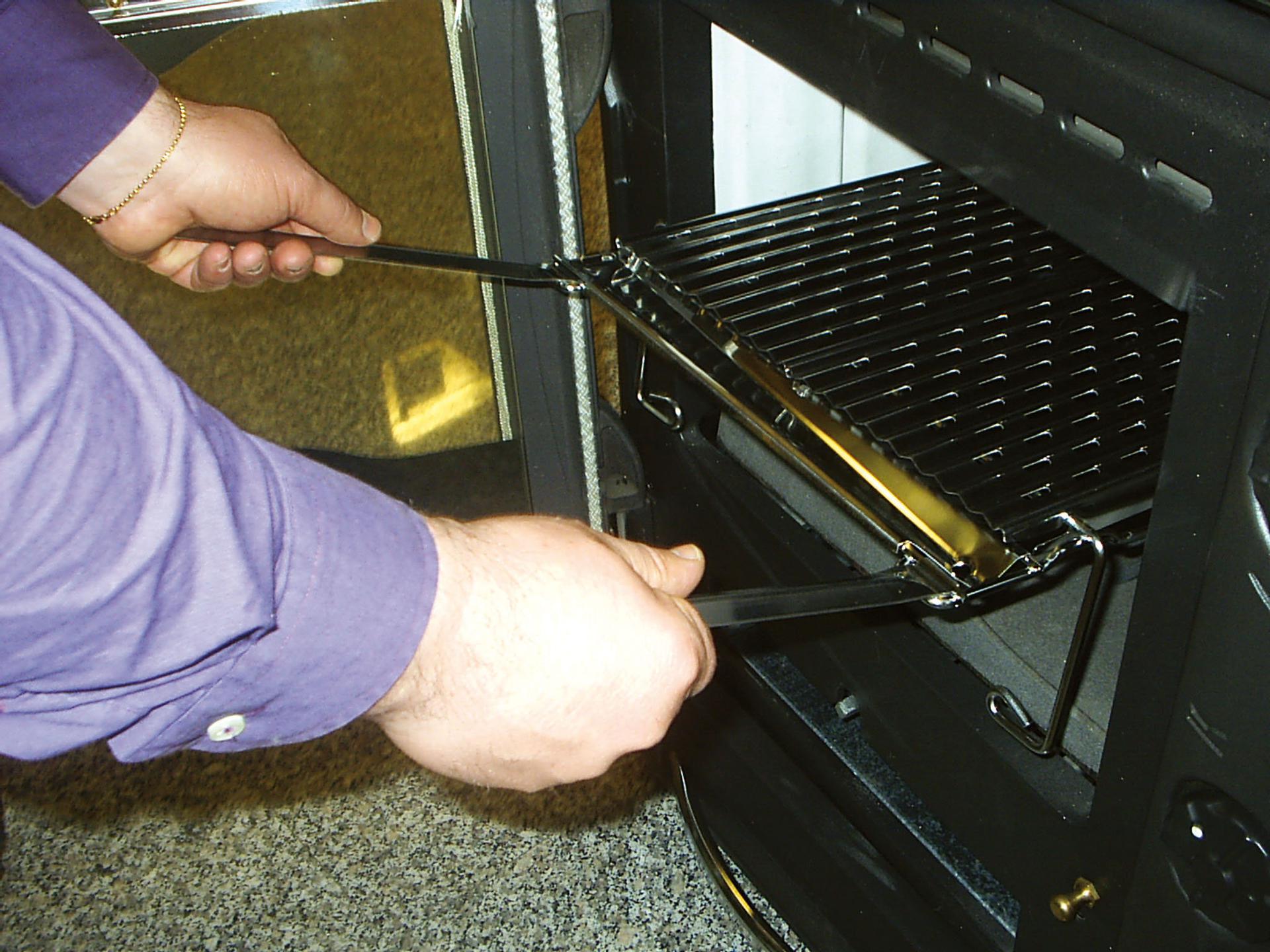

Equiped with enameled backing tray, inox grid and inox oven grid.
Doors in cast iron
The high-quality cast-iron doors are made to last and ensure perfect sealing at all times.
Glass cleaning system
A system of pre-heated air which removes any deposit from the fire-door glass.
Hearth in Nordiker
La Nordica-Extraflame uses a special material called Nordiker for the production of hearth walls refractories.
Outdoor air intake - ASC
A particular connection system which allows to introduce air from the outside into the pre-heated environment around the fire-box.
Post combustion
The combustion system developed by La Nordica-Extraflame allows, due to a secondary/tertiary air system, a post combustion which significantly reduces emissions.
Technical Data |
Discontinued
|
|
|---|---|---|
| SKU |
GLNCW7016014
|
|
| General data | ||
| Nominal heat output | kW |
11.60
|
| Heatable volume | m3 |
333
|
| Efficiency at rated power | % |
76.00
|
| Fuel | ||
| Hourly consumption | kg/h |
3.50
|
| Wood length | cm |
30
|
| Fire mouth width | mm |
300
|
| Fire mouth height | mm |
405
|
| Hearth width | mm |
400
|
| Hearth depth | mm |
460
|
| Hearth height | mm |
410
|
| Connections | ||
| Flue outlet size | mm |
160
|
| Flue position |
Rear center
Top center
|
|
| Air intake pipe | mm |
100
|
| Cooking and baking | ||
| Cooking plate |
Cast iron with rings
|
|
| Oven capacity | l |
78
|
| Oven width | mm |
436
|
| Oven depth | mm |
430
|
| Oven height | mm |
418
|
| Design | ||
| Installation mode |
Free standing
|
|
| External facing |
Steel
|
|
| Design style |
Rustic
Traditional
|
|

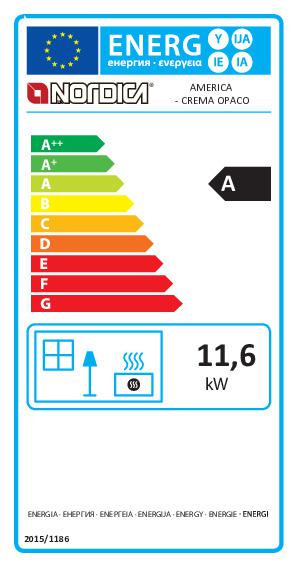

| Energy Efficiency | ||
| Energy class |
|
|
| Physical Data | ||
| Dimensions (L x W x H) | mm | 1280 x 660 x 860 |
| Net Weight | kg | 321.0 |
