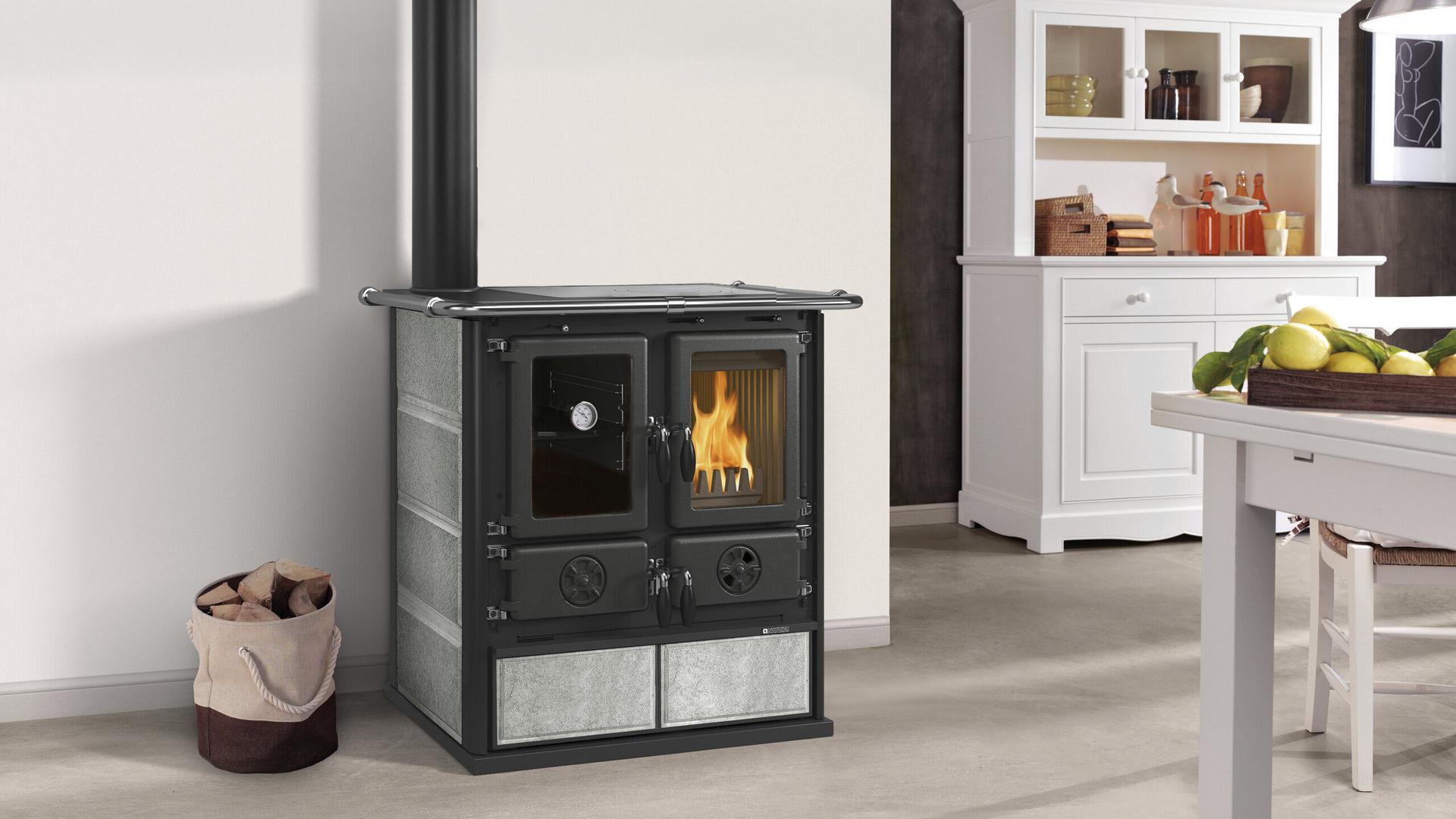

Rosetta Sinistra 5.0 is distinguished by its smoke outlet on the left side, a concrete response to specific installation requirements. Its cast iron hearth and 28-litre oven combine elegance and performance, warming the room while cooking dishes with authentic flavour.
Product advantages:
- Cast iron hearth
- Enamelled cast iron doors and frame
- Enamelled steel dome
- Top cooking plate and rings in polished cast-iron
- Extractable ash drawer
- Adjustable primary and secondary air for better combustion management
- Post-combustion system for low emissions
- Ceramic glass
- Wood drawer
- 28 l porcelain enamelled steel oven
- Upper left or rear left smoke outlet
Finishes in natural stone cladding. The soul of fire and warmth.
Doors in cast iron
The high-quality cast-iron doors are made to last and ensure perfect sealing at all times.
Glass cleaning system
A system of pre-heated air which removes any deposit from the fire-door glass.
Outdoor air intake - ASC
A particular connection system which allows to introduce air from the outside into the pre-heated environment around the fire-box.
Post combustion
The combustion system developed by La Nordica-Extraflame allows, due to a secondary/tertiary air system, a post combustion which significantly reduces emissions.
Technical Data |
|
|
|---|---|---|
| SKU |
GLNCW7013163
|
|
| General data | ||
| Nominal heat output | kW |
7.90
|
| Heatable volume | m3 |
226
|
| Efficiency at rated power | % |
86.90
|
| Fuel | ||
| Hourly consumption | kg/h |
2.10
|
| Wood length | cm |
30
|
| Fire mouth width | mm |
209
|
| Fire mouth height | mm |
265
|
| Hearth width | mm |
230
|
| Hearth depth | mm |
382
|
| Hearth height | mm |
270
|
| Connections | ||
| Flue outlet size | mm |
130
|
| Flue position |
Rear left
Top left
|
|
| Air intake pipe | mm | |
| Cooking and baking | ||
| Cooking plate |
Cast iron with rings
|
|
| Oven capacity | l |
28
|
| Oven width | mm |
245
|
| Oven depth | mm |
384
|
| Oven height | mm |
300
|
| Design | ||
| Installation mode |
Free standing
|
|
| External facing |
Stone
|
|
| Design style |
Rustic
|
|
| Energy Efficiency | ||
| Energy class |
 |
|
| Physical Data | ||
| Dimensions (L x W x H) | mm | 885 x 572 x 843 |
| Net Weight | kg | 167.0 |
