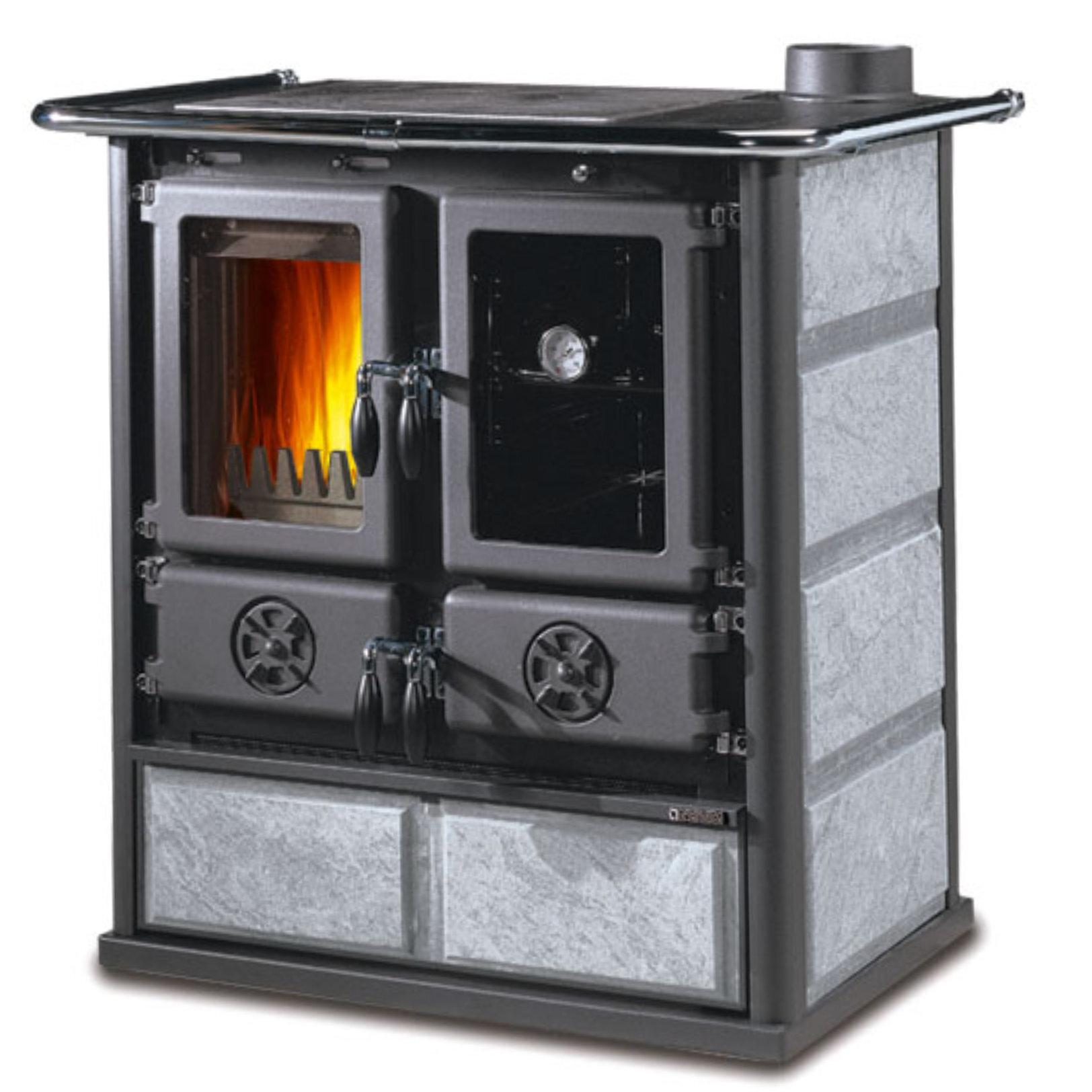

Rosetta 5.0 brings tradition to the kitchen with its cast iron hearth and 28 litre oven. Clad in majolica or natural stone, it offers elegant design and ecological performance, warming the environment and creating authentic flavours with every dish.
Product advantages:
- Cast iron hearth
- Enamelled cast iron doors and frame
- Enamelled steel dome
- Top cooking plate and rings in polished cast-iron
- Extractable ash drawer
- Adjustable primary and secondary air for better combustion management
- Post-combustion system for low emissions
- Ceramic glass
- Wood drawer
- Rear or upper smoke discharge outlet
Finishes in natural stone cladding. The delicacy and purity that illuminate every space.
Doors in cast iron
The high-quality cast-iron doors are made to last and ensure perfect sealing at all times.
Glass cleaning system
A system of pre-heated air which removes any deposit from the fire-door glass.
Outdoor air intake - ASC
A particular connection system which allows to introduce air from the outside into the pre-heated environment around the fire-box.
Post combustion
The combustion system developed by La Nordica-Extraflame allows, due to a secondary/tertiary air system, a post combustion which significantly reduces emissions.
Technical Data |
|
|
|---|---|---|
| SKU |
GLNCW7013103
|
|
| General data | ||
| Nominal heat output | kW |
7.90
|
| Heatable volume | m3 |
226
|
| Efficiency at rated power | % |
86.90
|
| Fuel | ||
| Hourly consumption | kg/h |
2.10
|
| Wood length | cm |
30
|
| Fire mouth width | mm |
209
|
| Fire mouth height | mm |
265
|
| Hearth width | mm |
230
|
| Hearth depth | mm |
382
|
| Hearth height | mm |
270
|
| Connections | ||
| Flue outlet size | mm |
130
|
| Flue position |
Rear left
Top left
|
|
| Air intake pipe | mm |
120
|
| Cooking and baking | ||
| Cooking plate |
Cast iron with rings
|
|
| Oven capacity | l |
28
|
| Oven width | mm |
245
|
| Oven depth | mm |
384
|
| Oven height | mm |
300
|
| Design | ||
| Installation mode |
Free standing
|
|
| External facing |
Stone
|
|
| Design style |
Rustic
Traditional
|
|
| Energy Efficiency | ||
| Energy class |
 |
|
| Physical Data | ||
| Dimensions (L x W x H) | mm | 885 x 572 x 843 |
| Net Weight | kg | 167.0 |
