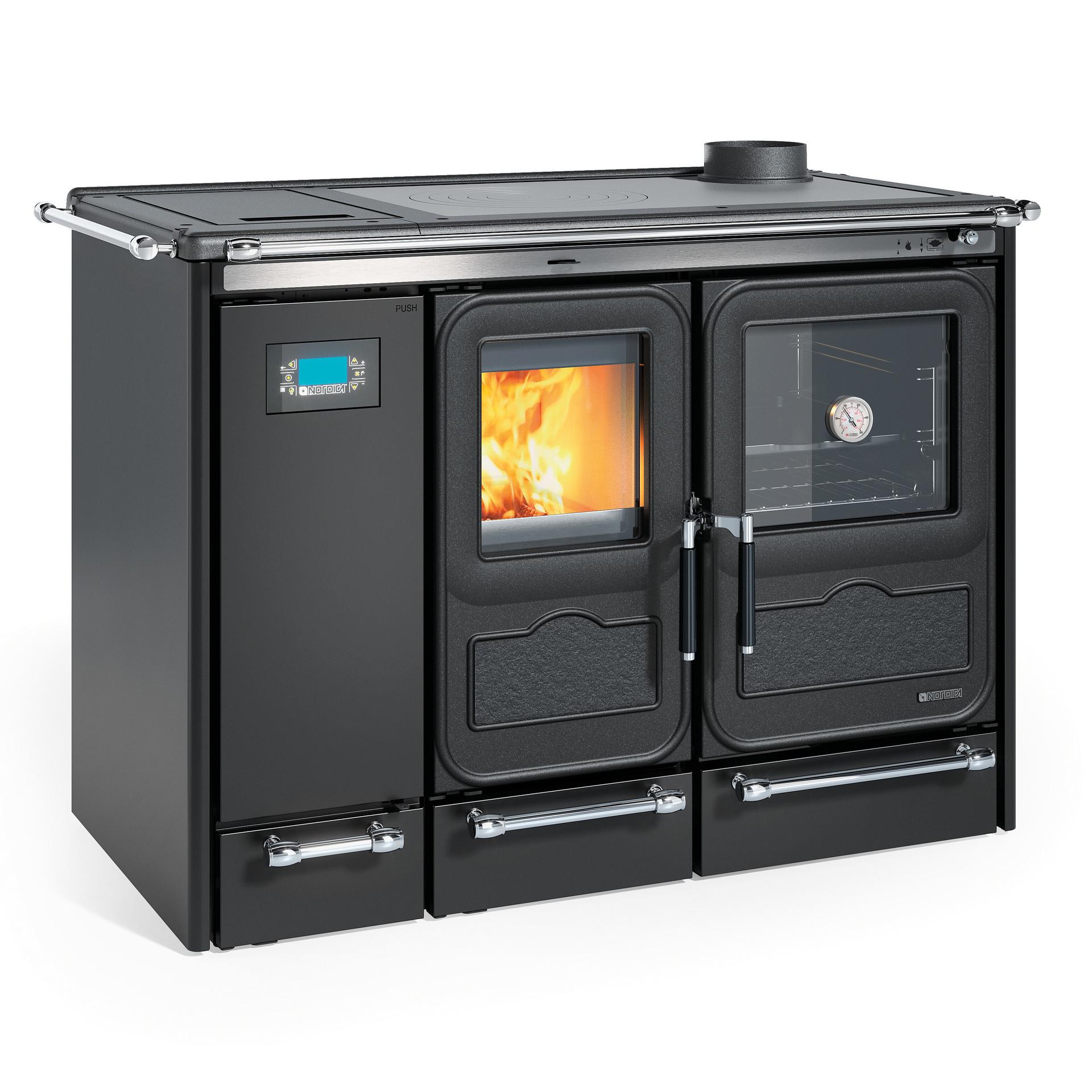

Designed to connect to the thermo-hydraulic system, Sierra is a complete system for heating your home but also a perfect ally for rediscovering the authentic flavours of the past. It is also suitable for installations where water pressure is not guaranteed in the absence of electricity (houses not served by an aqueduct).
Product advantages:
- Stainless steel cover polished cast iron plate for access to coils and water inlet
- Enamelled steel sides
- Access for technical compartment
- Access for ash drawer
- Object drawer
- Handles with new design
- Enamelled cast iron front, frame and doors
- Smooth cast iron plate
- Touch display for thermostove control:; Water level for 'bain-marie’; Oven light control; System water temperature; DHW temperature; System pump management; 3-way valve management; aux pump management; aux generator management; Acoustic signalling of machine alarms
- Standard hydraulic equipment: Heating circuit coil; DHW circuit coil; Control unit: Frost protection function; Pump anti-seize function; Low consumption electronic circulator for primary circuit; Non-return valve; Automatic venting all-purpose equipment DHW flow switch; Level switch; Sacrificial magnesium anode; Primary circuit temperature sensor; Fill/drain tap
Direct outdoor air intake - BBC
Air intake system which draws fresh air from outside directly into the adjust system combustion regulation of the firebox of the appliance.
Doors in cast iron
The high-quality cast-iron doors are made to last and ensure perfect sealing at all times.
Glass cleaning system
A system of pre-heated air which removes any deposit from the fire-door glass.
Post combustion
The combustion system developed by La Nordica-Extraflame allows, due to a secondary/tertiary air system, a post combustion which significantly reduces emissions.
Technical Data |
|
|
|---|---|---|
| SKU |
GLNCT7017601
|
|
| General data | ||
| Nominal heat output | kW |
15.40
|
| Nominal useful water power | kW |
10.20
|
| Heatable volume | m3 |
442
|
| Efficiency at rated power | % |
87.70
|
| Boiler capacity | l |
58.00
|
| Fuel | ||
| Hourly consumption | kg/h |
4.00
|
| Wood length | cm |
33
|
| Fire mouth width | mm |
267
|
| Fire mouth height | mm |
179
|
| Hearth width | mm |
297
|
| Hearth depth | mm |
454
|
| Hearth height | mm |
626
|
| Connections | ||
| Flue outlet size | mm |
150
|
| Flue position |
Rear right
Top right
|
|
| Air intake pipe | mm |
100
|
| Heating water delivery |
1’’
|
|
| Heating water return |
1’’
|
|
| Cooking and baking | ||
| Cooking plate |
Cast iron with rings
|
|
| Oven capacity | l |
51
|
| Oven width | mm |
333
|
| Oven depth | mm |
460
|
| Oven height | mm |
363
|
| Design | ||
| Installation mode |
Free standing
|
|
| External facing |
Steel
|
|
| Design style |
Traditional
|
|
| Energy Efficiency | ||
| Energy class |
 |
|
| Physical Data | ||
| Dimensions (L x W x H) | mm | 1252 x 665 x 858 |
| Net Weight | kg | 340.0 |
