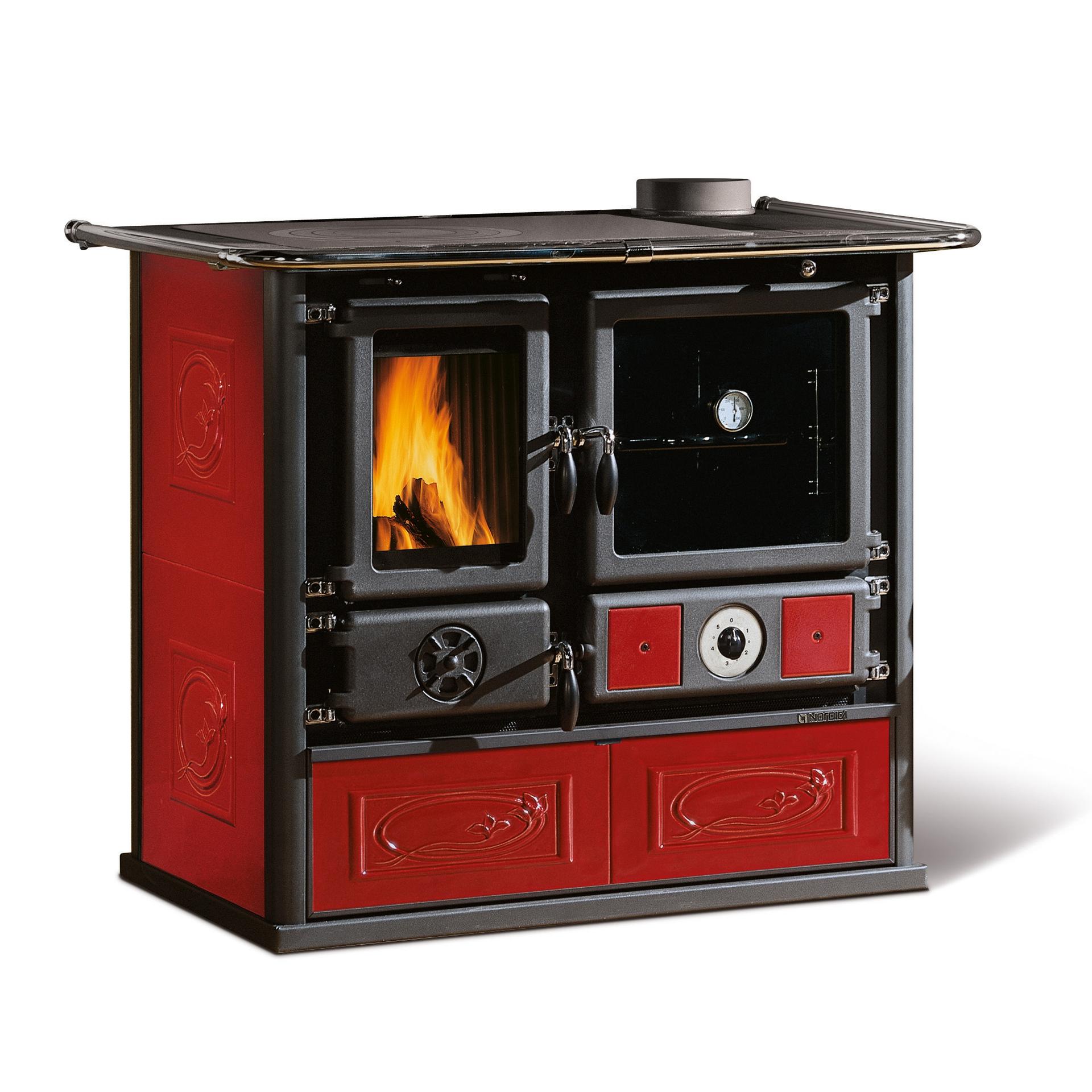

Wood burning thermo kitchen with DSA security device (DSA valve not included). Double glass fire door and facade in polished cast iron.
Automatic safety device
It is a safety device created to quickly reduce water temperature, according to rules in force. DSA valve not included.
Doors in cast iron
The high-quality cast-iron doors are made to last and ensure perfect sealing at all times.
Glass cleaning system
A system of pre-heated air which removes any deposit from the fire-door glass.
Post combustion
The combustion system developed by La Nordica-Extraflame allows, due to a secondary/tertiary air system, a post combustion which significantly reduces emissions.
Technical Data |
Discontinued
|
|
|---|---|---|
| SKU |
GLNCT7017555
|
|
| General data | ||
| Nominal heat output | kW |
11.00
|
| Nominal useful water power | kW |
7.00
|
| Heatable volume | m3 |
315
|
| Efficiency at rated power | % |
88.60
|
| Boiler capacity | l | |
| Fuel | ||
| Hourly consumption | kg/h |
3.00
|
| Wood length | cm |
30
|
| Fire mouth width | mm | |
| Fire mouth height | mm | |
| Hearth width | mm | |
| Hearth depth | mm | |
| Hearth height | mm | |
| Connections | ||
| Flue outlet size | mm |
150
|
| Flue position |
Rear right
Top right
|
|
| Air intake pipe | mm |
100
|
| Heating water delivery |
1’’
|
|
| Heating water return |
1’’
|
|
| Cooking and baking | ||
| Cooking plate |
Cast iron with rings
|
|
| Oven capacity | l |
55
|
| Oven width | mm | |
| Oven depth | mm | |
| Oven height | mm | |
| Design | ||
| Installation mode |
Free standing
|
|
| External facing |
Ceramics
|
|
| Design style |
Rustic
|
|
| Energy Efficiency | ||
| Energy class |
 |
|
| Physical Data | ||
| Dimensions (L x W x H) | mm | 1017 x 662 x 852 |
| Net Weight | kg | 226.0 |
