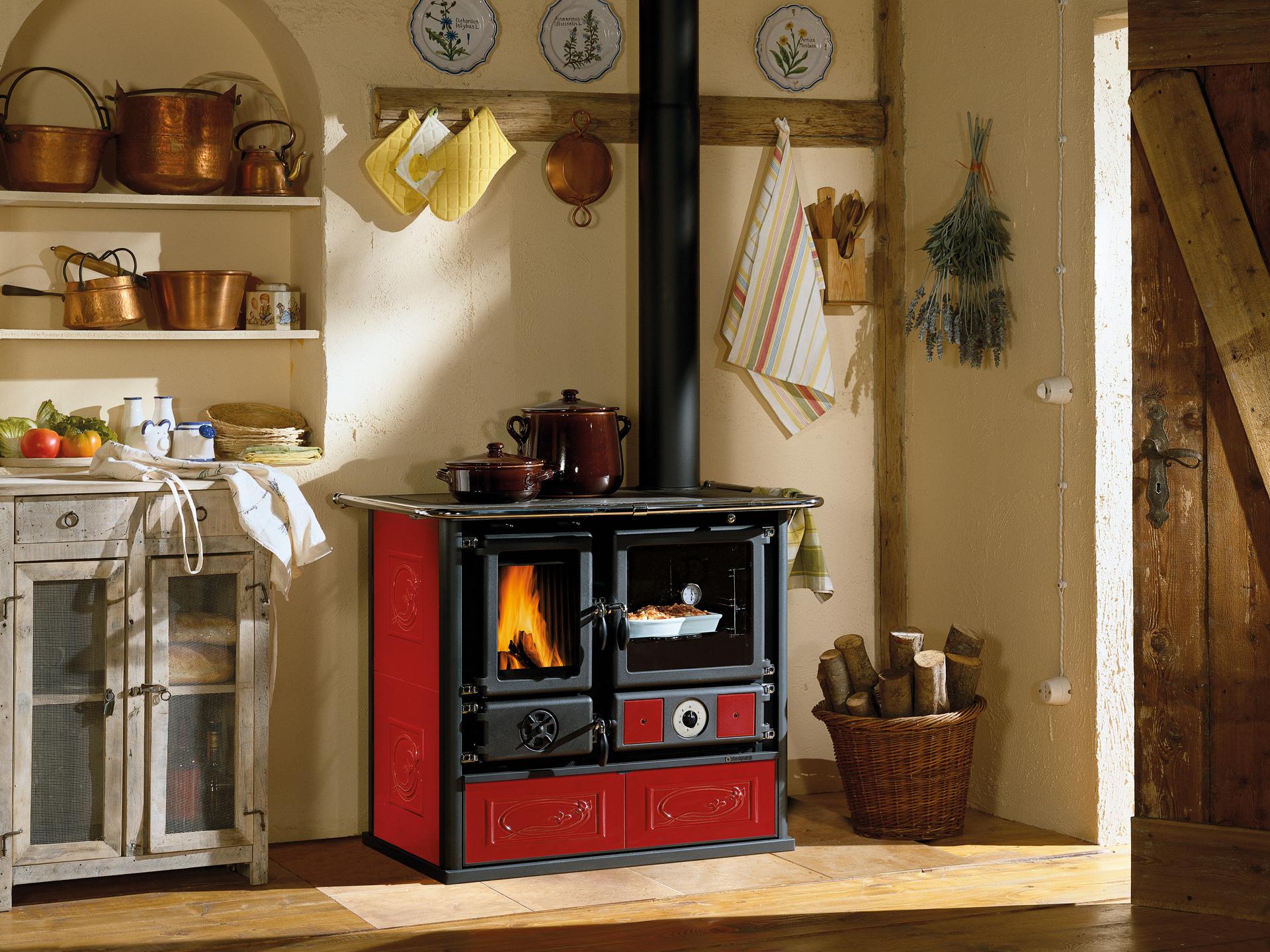

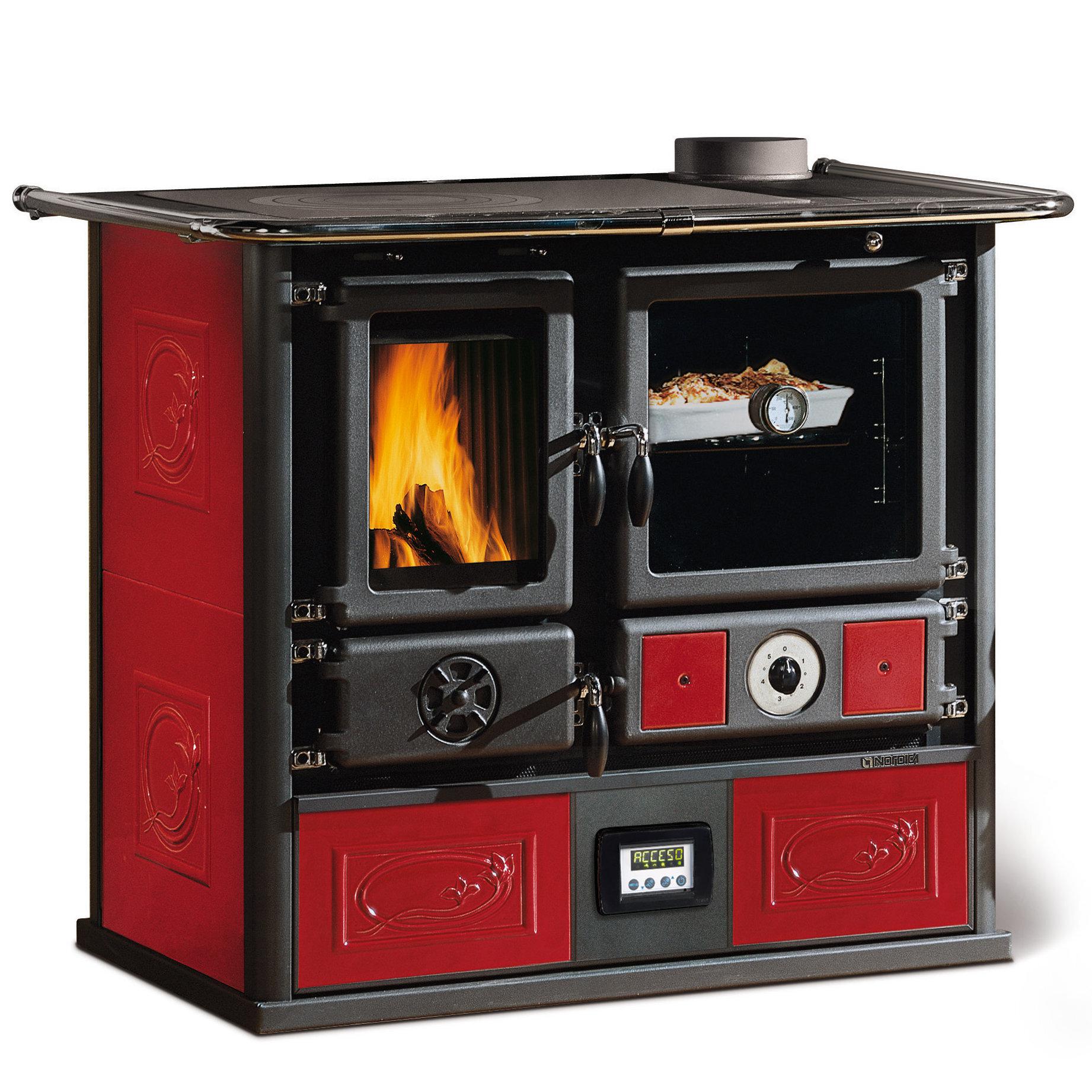

A wood-burning cooker that connects to the heating and plumbing system, efficiently and ecologically heating the entire house with an excellent heat output, low wood consumption and complete respect for the environment. wood consumption and with complete respect for the environment. Equipped with a large oven and cast-iron rim plate for cooking.
Product advantages:
- Firebox in steel and cast iron
- Enamelled cast iron doors and frame
- Enamelled steel dome
- Top cooking plate and rings in polished cast-iron
- Extractable ash drawer
- Adjustable primary and secondary air for better combustion management
- Post-combustion system for low emissions
- Ceramic glass
- Wood drawer
- 41 l porcelain enamelled steel oven
- Predisposition for DSA safety device (DSA valve optional)
- Rear or upper smoke discharge outlet
Automatic safety device
It is a safety device created to quickly reduce water temperature, according to rules in force. DSA valve not included.
Doors in cast iron
The high-quality cast-iron doors are made to last and ensure perfect sealing at all times.
Glass cleaning system
A system of pre-heated air which removes any deposit from the fire-door glass.
Post combustion
The combustion system developed by La Nordica-Extraflame allows, due to a secondary/tertiary air system, a post combustion which significantly reduces emissions.
Technical Data |
|
|
|---|---|---|
| SKU |
GLNCT7017510
|
|
| General data | ||
| Nominal heat output | kW |
15.50
|
| Nominal useful water power | kW |
9.00
|
| Heatable volume | m3 |
444
|
| Efficiency at rated power | % |
79.90
|
| Boiler capacity | l |
14.00
|
| Fuel | ||
| Hourly consumption | kg/h |
4.50
|
| Wood length | cm |
30
|
| Fire mouth width | mm |
220
|
| Fire mouth height | mm |
225
|
| Hearth width | mm |
265
|
| Hearth depth | mm |
400
|
| Hearth height | mm |
285
|
| Connections | ||
| Flue outlet size | mm |
150
|
| Flue position |
Rear right
Top right
|
|
| Air intake pipe | mm | |
| Heating water delivery |
1’’
|
|
| Heating water return |
1’’
|
|
| Cooking and baking | ||
| Cooking plate |
Cast iron with rings
|
|
| Oven capacity | l |
41
|
| Oven width | mm |
330
|
| Oven depth | mm |
410
|
| Oven height | mm |
300
|
| Design | ||
| Installation mode |
Free standing
|
|
| External facing |
Ceramics
|
|
| Design style |
Rustic
|
|
| Energy Efficiency | ||
| Energy class |
 |
|
| Physical Data | ||
| Dimensions (L x W x H) | mm | 1017 x 662 x 852 |
| Net Weight | kg | 211.0 |
